Home > Products > New product > solar PV connector

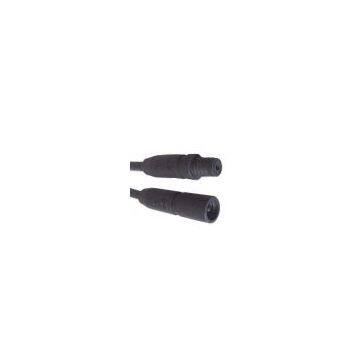

solar PV connector
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | REOO | Place of Origin | China | |
| Model Number | RO-2A |
Product Description
1.Water proof and dust proof
2.Simple,quick installation
3.suitable to MC3 solar connector system
4.TUV approved
5.competitive price
main feature:
1.Connector adopts touch and insertion of reed with inner-knob type.
2.Auto-lock enable connection more easy and reliable.
3.Popular figure suit most of field installation
Technical data:
Insulation material:PPO/TPE/PA
Rated current:30A
Rated voltage:1000V
Test voltage:6KV(50Hz,1Min)
Contact material: copper, tin plated
Contact resistance:5mΩ
Degree of protection:IP67
Safety class: Ⅱ
Flame calss:UL94-V0
Insertion force: ≤50N
Withdrawal force: ≥50N
Ambient temperature range:-40℃~+90℃
Suitable cable:2.5~6.0mm2AWG14/12/10
Contact Us
- Nangtong REOO Technolog CO.,Ltd
- Contact nameMs shelly zhou Chat Now
- Phone86-513-84105399
- AddressRudong chengnan industrial park, Yan'an, Shaanxi
