High Speed Shoe Laser Engraving and Cutting Machine With Different laser power

Shoe Laser Cutting Machine , Shoe Laser Engraving Machine , Galvo Laser Machine

Top Speed Laser Machine?-?Overwhelming Revolution in Shoes Industry

GOLDEN LASER?Galvo Laser Machine Can Achieve

?- 300 pairs of shoes per hour

?- Precise laser beam up to 200μm

?- Processing any design

?- Save tools cost, save label cost, save materials

?- Different laser power for option according to your requirement

BEST SELLER

?1. ZJ(3D)-9045TB for piece material

?2. ZJ(3D)-160100LD for roll material

GOLDEN LASER Galvo laser machines are available in sizes from 450mm×450mm, 450mm×900mm, 1600mm×1000mm up to 1600×1600mm and?CO2 RF laser sources from 100 watts to 500 watts.

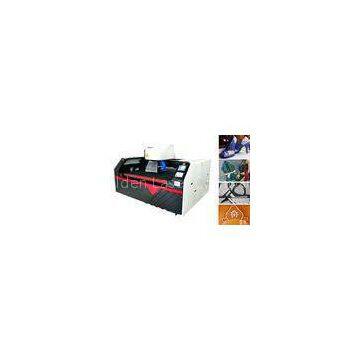

ZJ(3D)-160100LD is a versatile laser system for?laser cutting and?high speed engraving with the help?of a three axes Galvo head.?The head comprises of a Galvo system where the laser beam is switched between the cutting head which provides with?cutting and the Galvo head which produces high speed engraving.

The ability to automatically switch between cutting and marking within one machine produces high production levels.

Brief Introduction

Full-automatic and high-speed galvanometer engraving and cutting system.

Feeding, engraving, cutting and receiving finished at one time.

More than 10 times faster than traditional laser cut.

the galvanometer system also supports 160~180cm and other large processing format.

Enable the traditional processing technology?achieve quantitative and qualitative leap.

Advantage

Replaced traditional gantry laser (XY axis plotters) processing, to achieve automatic engraving, cutting and punching for rolls of leather and fabric. Saving time, saving labor, saving materials, high efficient. In high value-added products while minimizing the cost savings.

Machine Features

In shoe leather materials processing, traditional laser engraving and punching is processing on finished cut material. These technics include complex procedures such as cutting, positioning, engraving and punching, which have problems of wasting time, wasting materials and wasting labor.

Versatile laser machine ZJ(3D)-160100LD integrates nesting, engraving, punching and cutting, successfully resolved the problem of the traditional process. Integrated working platform, saving labor, improving efficiency.

?? Galvanometer scan laser mode. High speed engraving, hollowing and cutting for leather, shoes materials and fabrics.

?? Germany Scanlab 3D dynamic Galvo head, single scan area up to 400mm×400mm. 150W CO2 RF metal laser generator (275W / 500W Optional). Laser output power and processing speed can be adjusted to maximize energy savings.

?? Conveyor belt with auto-feeding system (optional), realizing efficient and automatic processing for material in roll. Foot switch for easy operation.

?? Following top and bottom exhaust fans ensure good exhaust suction effects and environment friendly processing.

???User-friendly 5 inches LCD screen CNC system and off-line motion control system with high automation.

Main Technical Parameter
