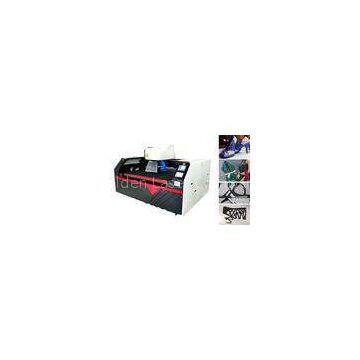

Galvo Laser Engraving Cutting Machine for Leather Shoe Fabric with Auto Feeder

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

Galvo Laser Cutting Engraving Machine for Leather Shoe Fabric with Auto Feeder

ZJ(3D)-160100LD has been designed for customers who need a versatile system matching the laser cutting with the high speed marking capabilities of a three axes Galvo head.?The head comprises of a Galvo system where the laser beam is switched between the cutting head which provides with vertical cutting in thick material and the Galvo head which produces high speed marking and punching of thin materials.

The ability to automatically switch between cutting and marking within one machine produces high production levels. An exceptionally accurate high quality cut encompassing the full working area is obtained by the design, build quality, stability and the latest generation of control unit. GOLDEN LASER Galvo laser machines are available in sizes from 450mm×450mm, 450mm×900mm, 1600mm×1000mm up to 1600×1600mm with CO2 RF laser sources from 100 watts to 500 watts.

ZJ(3D)-160100LD Galvanometer Laser Machine

Full-automatic and high-speed galvanometer engraving and cutting system. Since then, the galvanometer system also supports 160~180cm and other large processing format. Feeding, engraving, cutting and receiving finished at one time. More than 10 times faster than traditional laser cut.

Function

Three-dimensional dynamic Galvo system. The largest single-scan processing format 400mmX400mm It is a versatile laser cutting and marking system that suitable for engraving, punching and cutting of leather and fabrics in roll. Widely used in the apparel industry, shoe industry, textile industry. The traditional processing technology to achieve quantitative and qualitative leap. Any intricate graphics can be processed by laser. Quantitative and qualitative leap of traditional technique.

Application Industry

Shoes and bags industry: roll of leather engraving, punching and cutting Apparel industry: sportswear high speed punching and cutting. Garment fabric engraving cutting Upholstery textile industry: roll of textiles engraving, punching and cutting Carpet industry: carpet mat logo engraving, personalized pattern engraving Packaging industry: roll of film high speed perforation

Advantage

Replaced traditional gantry laser (XY axis plotters) processing, to achieve automatic engraving, cutting and punching for rolls of leather and fabric. Saving time, saving labor, saving materials, high efficient. In high value-added products while minimizing the cost savings.

(1) Save time. Depending on the laser power, the processing speed can reach 3000 mm/s ~ 20000 mm/s. More than ten times the speed of conventional laser machining.

(2) Save labor. Just need one person to load material. Laser systems with automatic feeder working. The device will automatically stop when the entire roll of fabric processing is completed, then the person receiving material.

(3) High efficient. High speed marking and cutting for volume production.

(4) Easy to use. No required mold, do any graphics, high added value.

(5) Fine processing effect, to meet the demand of high-end brands.

Machine Features

In shoe leather materials processing, traditional laser engraving and punching is processing on finished cut material. These technics include complex procedures such as cutting, positioning, engraving and punching, which have problems of wasting time, wasting materials and wasting labor.

Versatile laser machine ZJ(3D)-160100LD integrates nesting, engraving, punching and cutting, successfully resolved the problem of the traditional process. Integrated working platform, saving labor, improving efficiency.

?? Galvanometer scan laser mode. High speed engraving, hollowing and cutting for leather, shoes materials and fabrics.

?? Germany Scanlab 3D dynamic Galvo head, single scan area up to 400mm×400mm. 150W CO2 RF metal laser generator (275W / 500W Optional). Laser output power and processing speed can be adjusted to maximize energy savings.

?? Conveyor belt with auto-feeding system (optional), realizing efficient and automatic processing for material in roll. Foot switch for easy operation.

?? Following top and bottom exhaust fans ensure good exhaust suction effects and environment friendly processing.

???User-friendly 5 inches LCD screen CNC system and off-line motion control system with high automation.

Main Technical Parameter

Laser Type	Co2 RF metal laser tube
Laser Power	100W / 150W / 275W / 500W
Cutting Area	1600mm×1000mm
Working Table	Conveyor working table
Processing Speed
