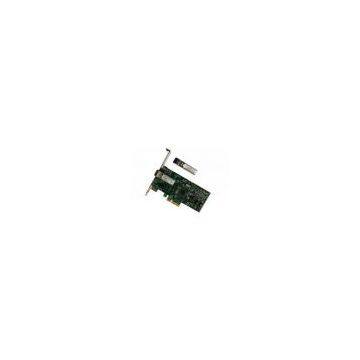

Gigabit Ethernet Single-port Server Adapter Card 10001PF-MM

Products Name

10001PF-MM

Products Type

Server Adapter

Chipset

Intel 82571EB Gigabit Controller

Bus Interface

PCI-E

Whole Duplex

Compatible whole duplex and half duplex

Network interface type

SFP Slot*1(1000BASE-SX,1000BASE-LX,1000BASE-ZX),LC fiber

Transmission speed Mbps

1000

Transmission medium type

LC?fiber optic cable?

Interface

LC

Cable

Single-mode fiber（62.5m? or? 50m）

Network standard

IEEE802.3(1000BASE-SX,1000BASE-LX,1000BASE-ZX)

Date Rate/Distance

1.25G/550m

Fiber Module

FS-0850-1055

Long-range awaken function

support

Compatible operating system

Microsoft Windows * Server2003 Enterprise Edition, Datacenter Edition (32-bit and 64-bit), Microsoft Windows 2000, Red Hat Linux * 2.4x or later (32-bit and 64-bit), FreeBSD 4.x or later, Nove II Netware * 5.x, 6.x, Sun Solaris * x86, OS8 and later

LED Indicator Lamp

1

Rated power consumption

3.3Watts（3.3V，1A）

Working Temprerature

0-55

Working Humidity

85%

Stoke Temperature

-20-65

Stoke Humidity

85%

Length

12.9 centimeters (5.1 inches)

Width

6.8 centimeters (2.68 inches)

Features

Advantages

Intel 82571EB

Gigabit Ethernet controller

apply two Gigabit connections in one NIC, thereby increase the server's bandwidth, solve only limited slots,provide superior performance and good reliability and reduce power consumption of the monolithic dual-port PCI Express Gigabit Ethernet controller chipset.

Multi-core CPU load balancing

When used in conjunction with the receiver extension of Microsoft or Linux * scalable I / O devices, Femrice PRO/1000 dual port server adapter can be ?balance effectively among the network load of multiple CPU cores,so to improve the performance of multiprocessor systems

Interrupt adjus

As well as improve performance ,reducing CPU utilization significantly

compatible in x4, x8, and x16 PCI Express * slot

realize operation with almost all types of PCI Express server slots (x1, except), and will not interfere when the two ports are running

Supports most of the network operating system (NOS)

can be widely deployed

Remote management support

support industry-standard remote management, thereby reducing support costs

LC Interface

Small interface design with t
