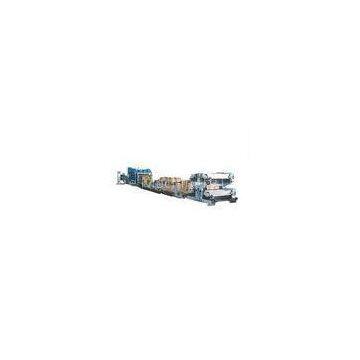

Multi Wall Kraft Paper Sack Making Machine with International Standard Tuber and Bottomer

FOB Price

USD $ 880 - $ 880 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Tecon		Place of Origin	China
Model Number	ZT9804+HD4913

Delivery Time:Depends on the technical requirements
Certification:CE; ISO9001

Mutil-wall Paper Sack Making Machine with Tuber and Bottomer

Technical parameters of our production line:

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?ZT9804?Tuber Machine

Operating condition

Performance

Speed	120~150 tubes/min(Depends on paper quality, number of ply and operators’ skill.)
Tube length	670~1035?mm
Tube width	420~600 mm
Type of cutting	Step cut&Flat cut
Number of ply	2~4 paper + 1 PP/PE(Please specify if you need paper bag with PP film)
Printing width	1300 mm(MAX)
Paper reel width	660~1260 mm
Paper reel diameter	Max. 1, 300 mm
Main drive motor	30kw
Size of whole set	35.3m×2.4m×2.7m( L×W×H)
Total weight	32 T

Composing of the Machine
ZT9804?Tuber Machine

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? HD4913 Bottomer Machine

Operating condition

Performance

Speed	80~130 bags/min(Depends on paper quality, number of ply and operators’ skill.)
Bag length	520~880mm
Bag width	420~600 mm
Bottom width	90~130mm
Bottom open width	200~380mm
Distance between bottom centers	420~780mm
Valve sheet length	100~250mm
Valve sheet width	120~170mm
Main drive motor	33kw
Total weight	22.7T
Size of whole set	21.3m×2.3.m×1.8m ( L×W×H)
Valve sheet reel diameter	Max.1,300mm
