102 Passenger Xinfa Airport Equipment With 6700mm Wheel Base
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Large Capacity 200 Liter Fuel tank Low Floor Buses Apron Bus For Airport
-
Large Capacity 4 Stroke Diesel Engine Airport Shuttle Bus 5300
-
Large Capacity Airport Coaches Aero Bus With 4 Pneumatic Double Opening Doors
-
Ramp Bus 3m Width With Adjustable Seats Customized High Quality
-
Aluminum Apron Tarmac Coach Shuttle Bus To The Airport 13m3m3m
-
Customized 77 Passenger Airport Passenger Bus Xinfa Airport Equipment
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS

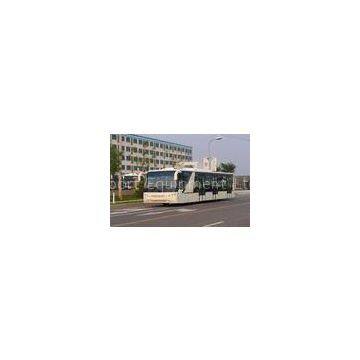

Xinfa Airport Equipment Aero Bus 5300 With More Seats Customized High Quality
Description:
1.??? Up to 102 passengers?fit comfortably in the Xinfa Airport Equipment Aero Bus. That is double the amount that fits into a normal solo city bus. Short ”turn arounds” optimise terminal capacities
2.????optional AC System?for the passenger compartment is offered for especially hot and tropical regions. Whilst air conditioning of the driver’s cabin is standard equipment even retrofitting an optional passenger compartment system creates no problems.
Specification:
|
No. |
Particulars |
Specs |
|---|
1.
Length × Width ×Height (external)
13400mm(±20mm)×3000mm×3178mm
2.
Bus body
Low carbon alloy steel body with aluminum apron;
3.
Wheel base
6700mm
4.
Passenger accommodation capacity
Up to 102 passengers including fourteen (14) seats, in compliance with IATA specifications: four (4) Passengers per sqm
5.
Curb weight
12300kgs
6.
The varied height from passenger cabin floor sill to the ground level
270mm~340mm subject to embarkation and/or disembarkation of passengers
|
7. |
Volume capacity of vessels |
Fuel tank volume |
200 liter |
|
Anti-freeze fluid |
20 liter |
||
|
Engine lubrication system |
14.2 litter |
||
|
Gearbox lubrication system |
18 liter |
||
|
Main reduction gear of front axle and wheel rim reduction gear |
10 liter |
||
|
Steering gear |
5 liter |
||
|
8. |
Front axle (Driving axle) |
MERCEDES BENZ 733.W14 (right-hand drive) MERCEDES BENZ 733.W02(left-hand drive) |
|
|
Front wheel alignment |
King-pin angle of toe-in |
5° |
|
|
King-pin caster angle |
0° |
||
|
Ratio of master drive: |
7.631 |
||
|
Wheel rim velocity ratio |
1 |
