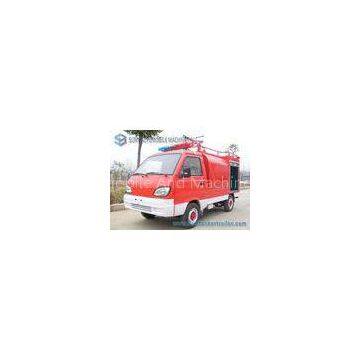

Changan Single Row dual Axle small Fire Fighting Trucks 4x2

FOB Price

USD $4 - $5 / Set

1 Set(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

4000 L- 5000 L Chang’an Single Row Mini Water Tank Fire Fighting Truck 4x2 2 Axle 53 hp? ??

Description & application:
1- Water tank fire truck equipped with water storage tank, fire pumps, fire fighting water cannon, and other fire equipment to put out the fire. It also can be absorb water directly and supply water to other fire vehicle, equipment or water supply shortage region. It is suitable for general fire put out.
2- There are Water and foam fire fighting truck, Dry powder fire truck and Ladder fire truck optional
?
Competitive Advantage:
1- powful R & D capabilities ---- we can design and produce the truck according to different fire equipment of different countries so that it can be fit for different countries’ demand.
2- strict quality control ---- stable quality for each truck
3- competitive price ----- based on same product, our price is most competitive
4- best service ----- we cherish each customer and opportunity.
?
Specifications:

4000 L- 5000 L Chang’an Single Row Mini Water Tank Fire Fighting Truck 4x2 2 Axle 53 hp? ??

Product	Fire truck
Vehicle description	Overall dimensions ( mm )	415015302280
GVW ( kg )	1800
Mass in working order ( kg )	1200
Rated loading capacity (kg )	470
chassis parameters	Chassis mod	SC1022DB4
Fact cubage ( L )	500
Foam tanker internal dimension
Water tanker internal dimensions	234013801380
Approach/Departure angle ( ° )	58/ 29
F/R overhang ( mm )	480/ 1170
Wheel base ( mm )	2500
F/R track base ( mm )	1280/ 1290
Traction system	4*2
Number of axles	2
F/R axle-load ( Kg )	860/940
Spring plate	-/5
Braking system	Air braking
Tire specification	165/70R13LT
Number of tires	4+1
Electric system	24 v
Allowable passengers in cab	2
Air-conditioner	optional
Engine	Engine model	JL66Q4
Type of fuel	Diesel
Exhaust(ml)	1012
Rated Power ( kw )	39
Horse power	53
Operation control system	Steering wheel
transmission	5 speed
Max speed ( km / h )	95
Manufacturer	Chongqing Chang’an Automobile Co., ?Ltd
Emission standard	EURO 3
Equipment	Middle and low pressure pump : CB20.10 / 30.60 Flow:middle pressure 30 L / S?? low pressure 60 L / S Pressure: middle pressure 2.0 MPa ?low pressure 1.0 MPa PL48 Fire Pump? Flow: 48 L / S Pressure: 1.0～1.2 MPa Fire distance (water): ≥ 65 m
Production cycle	15-20 days
Warranty	12 month, from the date of supply
