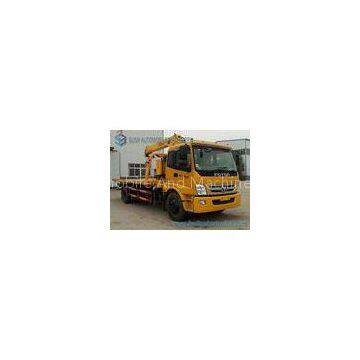

Customized FOTON Diesel 8 Ton / 10 Ton Tow Truck With Crane
- T/T L/C D/P D/A
- 7 days
You May Like
-
45m3 304 2B Edible Grade Chemical Tank Trailer 3 Axle For Milk / Liquid Food
-
JAC 3 Ton / 5 Ton 4 X 2 Flatbed Wrecker Truck With Single Row Cap
-
ISUZU 3000KG 4 X 2 Tow Truck Road Wrecker Truck 7305*2300*2480mm
-
Howo 8x4 Sinotruk Fuel Tank Truck , 310HP Carbon Steel Tanker Truck
-
XCMG / UNIC Telescopic / Knuckle Boom 5T Mounted Crane Truck 4X2
-
8x4 40m3 315HP Oil TankerTruck Oil Tank Trailer Fonton Auman
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Tow Truck Foton 4 X 2 8 Ton 10 Ton Flatbed Wrecker Truck With Crane
Product Description:
The wrecker truck technology and production has been great development in recent years. First of all,a series of varieties and specifications of more diversified structure; followed by the exclusive use of the chassis, chassis second-class diversification,to clear up obstacles in the path of the largest car models 4 bridge; the third is the structure of diverse functions,with lifts, lifting, towing,traction,back-dragging, cleaning, maintenance, etc; and the fourth is the ability to work even greater ability to drag up to give 25T, capacity 18T, lifting capacity 40T; the five is more advanced mode of operation, superior and comfortable working environment.
1. Product Parameter:
?
Chassis Description
|
Products?Technical?Specification |
|
|
Type? |
4 X 2 Flatbed Wrecker?Truck |
|
Brand |
FOTON |
|
Cab? |
One and half row |
|
Vehicle?Description?? |
|
|
Overall?dimensions (mm) |
9350 * 2460 * 3450 |
|
G.V.W?(kg) |
15800 |
|
Curb?weight (vehicle)?(kg) |
9605 |
|
Loading?capacity?(kg) |
5000-8000 |
|
Max?speed?(Km/h) |
110 |
|
Engine?Description? |
|
|
Engine?model |
ISF.3.8s3168 |
|
Maximum?power |
115kw / 168hp |
|
Displacement?(lit) |
4260 |
|
Chassis?Description? |
|
|
Chassis?Model |
BJ1169VKPEK-FA |
|
Wheel?base (mm) |
5200 |
|
Gear box |
8 forwards&1 reverse |
|
F / R?track?base (mm) |
1830 / 1800 |
|
F / R?overhang (mm) |
1300 / 2850 |
|
Spring?plate |
8 / 10 + 10 |
|
Front?axle?/?rear?axle (t)? |
6 / 10 |
|
Type?of?fuel |
Diesel |
|
Brake?system? |
Air?braking |
|
Operation?control?system |
Power Steering |
|
Electric?system |
24V |
|
Tyres & Tire?quantity |
9.00R20?&?6+1 |
|
Up-body Description |
|
|
Flat Bed |
|
|
Load rating (lb / kg) |
10000 / 4500 |
|
Platform length (inch / mm) |
248” / 6300 |
|
Overall width (inch / mm) |
94” / 2380 |
|
Inside width (inch / mm) |
92” / 2300 |
|
Winch rating (lb / kg) |
6600 / 3000 |
|
Diameter & length of steel cable |
4 / 9” x 82’ / 11 x 25000 |
|
Wheel-lift |
|
|
Lift rating at fully extended (lb / kg) |
6600 / 2000 |
|
Tow rating at fully retracted (lb / kg) |
8800 / 4000 |
|
The length to the wheel lift in and out (inch / mm) |
52” / 1320 |
|
Model |
SQ6.3ZK2Q |
SQ6.3SK2Q |
|
Max Lifting Capacity (kg) |
6300 |
6300 |
|
Max Lifting Moment (T.M) |
13.23 |
15.7 |
|
Crane Weight (kg) |
2115 |
2117 |
|
Installation Space (mm |
