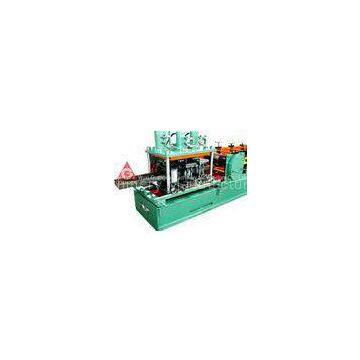

C Purlin Roll Forming Machine Metal Roof panel Rolling Form Machine

?
C Purlin Roll Forming Machine Metal Roof panel Rolling Form Machine
?
?
?
Quick Detail:
?
Composition
This C purline roll forming machine consists of several parts, as listed below.
?
1. 3T passive decoiler
2. Roll forming machine
3. Hydraulic shear
4. Hydraulic station
5. Hydraulic punch system
6. PLC control cabinet
7. Run out table
?
?
Working process:
?
Passive decoiling → guided material feeding → roll forming → punching → cut-to-length → running out
?
?
Description:
?
1. By adjusting the spacer, the purlin roll forming machine is able to produce six kinds of products with different specifications.
2. It adopts stepless variable speed drive, including manual type and automatic type, to fabricate different purlin panels, ensuring high precision and stable performance.
3. According to the customer\'s requirements, there are three options for the production process which are pre-punching and pre-cutting type (punching – cutting- pressing), pre-punching and post-cutting type (punching – pressing - cutting), as well as post-punching and post cutting type (pressing – punching - cutting).
4. Our purlin roll forming machine can be designed according to the drawings and requirements provided by our client.
As the name implies, our GWC80-300 C purlin roll forming machine could fabricate C sections in 6 specifications by adjusting the spacer. The finished C sections are widely used to make purlin and wall beam for steel buildings, and they can also be assembled together to form structural building components, such as lightweight roof truss, bracket, etc.
?
?
Applications:

?
?
Specifications
?

?
?
Advantage:
