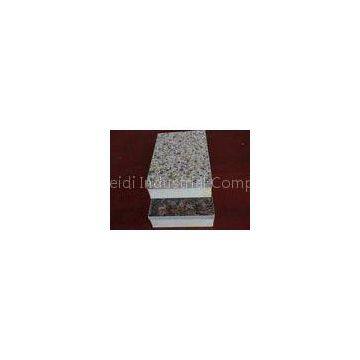

Customized Fireproof Insulation Board Polyurethane Panel Insulated Layer Weather Resistance

Product

Performance

UV coating　Decorative Insulation

Board

Decoration

Layer

UV coating decorative board

Water-resistant, fire-resistant, anti-pollution, anti-scratch, anti-abrasion, anti-acid , alkali resistance, impact resistance,UV-Resistance and weather resistance

Precious stone pattern, color, and gloss optional designed; Same using life for indoor use and building, the outdoor life is more than 25 years.

Insulation Layer

EPS insulation layer

(Grade B1)

Heat conductivity ≤0.041.? volume-weight :18kg / m3 with the tensile strength:110--120kpa; volume-weight 20kg / m3 with the tensile strength :140kpa.

XPS insulation Layer

(Grade B1)

Heat conductivity ≤0.030. Volume-weight 25--45kg / m3 & tensile ≥150kpa. Strong compressive resistance.?? 30-40 years average using life. Excenllent structure load-bearing performance .

Polyurethane insulation board

(Grade B1)

Hard polyurethane with low thermal conductivity, good thermal performance. When the hard polyurethane with the? density of? 35 ~ 40kg / m3, thermal conductivity is only 0.018 ~ 0.024w / (m.k), equivalent to? half of the EPS, is the lowest heat conductivity of all the insulation materials .

TPS insulation board

(Grade B1)

Heat insulation thermal conductivity is 0.060W / (m · k) ,it has good tensile compressive strength , impact resistance and stability ; its compressive strength reaches 150-500KPa

Rock wool? (Grade A)

Appearance quality: smooth surface, without prejudice practical scars, stains damaged. Combustion performance: non-combustible. Thermal load contraction temperature: 643 degrees.
Moisture absorption: 3.9%. Organic content: 2.9%.
Rockwool board basic parameters:
Material: rockwool
Apparent density: Rockwool 120 (kg / m3)
Heat conductivity: 0.04 (W / (m.K))
Max operating temperature: 80 (℃)
Specifications: 950,1150 (mm )
Operation standard: GB
Operating temperature: 80 (℃)

Phenolic Foam Board(Grade B Grade A)

Not be melt at high temperatures ,not be softened, with low smoke, non-proliferation flame resistance, flame penetration, There is? no distortion, no burning ,no fire, being placed 10 minutes at 1400 ℃, can effectively prevent the flames and smoke spread

Test Item

Detection standard

and requirements

The third party test results

Coating thickness(μm)

GB/T13452.2-

2008-10

≥30

199

Coating adhesion(MPa)

GB/T5210-2006

≥0.3

1.7(0.8-2.7),100%A

Hardness(Pencil)

GB/T6739-2006

≥4H

6H No scraping damage

Abrasive resistance(750g/500r)

,Suitable grinding wheel type:CS-10

GB/T1768-2006

0.003

Solvent resistance wiping(Butanone,

100times)

HC/T-3792-2005

Appendix

No undercasing

Meet the requirement

Acid-resistance(5%HC1 liquor,24H)

GB/T9274-1998

No blistering,No Falling off,non-discolouring

No Change

Alkali resistance

GB/T9274-1998

No blistering,No Falling
