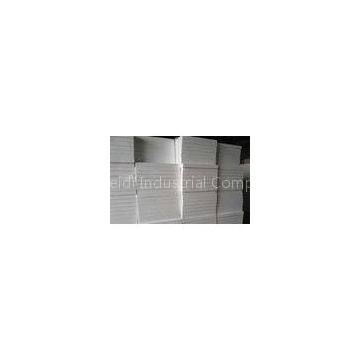

External EPS Heat Insulation Foam Wall Board / EPS Polyurethane Rigid Insulation Panel

Item

Performance

Heat Conductivity W/(m.k)

≤0.041

Water Absorbing Capacity(g/㎡)

≥500??? 24hrs Immersion

Heat Conductivity

W/(m.k)

Normal(P Type)

≥3.0 No Cracking

Reinforced (Q Type)

≥10.0 No Cracking

Wind Resistance

(Kpa)

No less than the project designed value of wind load design

Freezing and thawing Resistance

No cracking, hollowing, blistering, peeling on surface

Wet Steam Flow Density

(g/㎡·h)

≥0.85

Watertightness

?No water infiltration inside of the protective layer (Sample)

Weather Resistance

No cracking,pulverizing,peeling on surface

Freezing and thawing Resistance Performance

30 freeze-thaw cycles, No hollowing, shedding in protective layer;

Tensile bond strength Between the protective layer and the insulation layer ≥0.1Mpa, damaged to the insulation layer

Product

Performance

Decorative Insulation Board

Decorative layer

UV transferred decorative board

Water-resistant, fire-resistant, anti-pollution, anti-scratch, anti-abrasion, anti-acid , alkali resistance, impact resistance,UV-Resistance and weather resistance

Precious stone pattern, color, and gloss optional designed; Same using life for indoor use and building, the outdoor life is more than 25 years.

Rock slice real mineral paint decorative board

Superior adhesion,? water resistance, stain resistance, weather resistance, colorful

Real mineral paint mainly composed of polymers, natural stones& sand and related auxiliaries, hard as stone after dry ,? looks like natural stone

Multicolor Paint decorative board

?Super energy saved; high anti-cracking ; efficient simulation ;short construction period; super self-cleaning function, super-resistant scrub

Multicolor Paint , also known as liquid granite paint, is a high technology product with pure water, no pollution, rich granitic textures and polymer element structure. Compared with natural mineral paint, granite stone paint, texture paint, Sandstone paint and other sand sandstone,it has a completely different concept in nature.

Metal Fluorocarbon paint decorative board

High hardness, impact resistance, anti-buckling, wear resistance, anti-corrosion ,acid, salt. free Maintenance,self-cleaning no dust sticked, strong adhesion,weather resistance

?No chalking & fading, over 25 years long service life . with the? excellent insulation performance, low thermal conductivity and stability,no affected by temperature and humidity changes,and with the anti-water , permeability and other characteristics, to keep the whole building to achieve the constant temperature and humidity, constant oxygen.

Ultrathin stone veneer decorative board

Multifunction, light weight, high strength, easy to install and? processing

High quality, low cost,? insulation, good decoration performance

Insulation Layer

EPS insulation layer (Grade B1)

Heat conductivity ≤0.041.? volume-weight :18kg / m3 with the tensile strength:110--120kpa; volume-weight 20kg / m3 with the tensile strength :140kpa.
