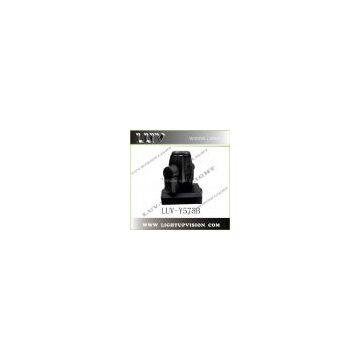

LUV-Y575B 575 Moving head SPOT H10

Brand Name	LUV		Place of Origin	China
Model Number	LUV-Y575B

E-mail:sales2@lightupvision.com
TECHNICAL REFERENCE
Voltage: 220V  AC/50HZ
Rotated Power Consumption: 750W
Lamp:  HMI 575W
Channel: 10 DMX512 Channel With 9 Motors
Control Signal: DMX512
Carton Size:   530*480*570mm
Double Flycase Size:  1030*610*800mm
N.W:28kg
G.W:31kg
PERFORMANCE  TRAIT
*Press keyboard  digital LCD,English operation
*Built-in auto-program, sound control program
*Can choose pan/tilt inverse ,control lamp body reseting by LCD or DMX
*Single color plate,7 colors, single step and wheel movement,fast single way rainbow effect,and tunable speed.
*Gobo can rotate,both single step and double way wheel movement,tunable speed
*Focusing automatically,triangle prism
*0-100% mechanical linear dimming,tunable from full blanking to full opening effect
*Scan range of 540 degrees horizontally and 270 degrees vertically,free and smooth scanning ,accurate positioning
*Each channel has light swap function ,used to make the effect of spot projecting
*Two fans cooling,so as to ensure all lamp body in temperature range as designed, built-in overheat protection,balance heat dissipation
*PFC power factor compensation,even can work when the voltage fluctuate 10V
* In compliance with all safety standards, IP20 protection class,power cables to CE20/22 standard
