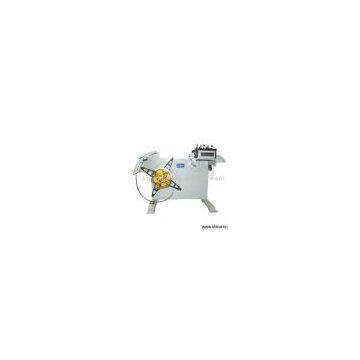

Sell 2-In-1 Straightener and Uncoiler

Model No.:TLS-500
Product Origin:China
Brand Name:King Jime
Price Terms:FOB Shenzhen
Payment Terms:L/C
Certification:
Description:Specifications: 1) Model: TLS-200 to 600 2) Max. material width: 200 to 600mm 3) Material thickness: 0.1 - 1.2mm 4) Machine dimensions (L x W x H): max. 2.5 x 1.9 x 1.9m 5) Coil I. dimensions: 450 - 530mm 6) Coil O. dimension: 1,200mm 7) Feed speed: 15m/min 8) Coil weight: 2,000kg 9) Coil expansion: hydraulic 10) Straightener roll: upper 8 and lower 9, all driven 11) Adjustment: 4 point fine micro adjustment 12) Photo sensor Features: 1) Compact unit-body construction minimizes required floor space 2) Leveler inclines appropriately to reduce feeding loop distance 3) Constructed with highly rigid structure and designed with a powerful motorized feeder 4) Rollers undergone specialized heat-treatment, highly resistant to wear and tear prolonged life span 5) Via continuous variable speed assembly, roller clamp marks and creases on product are eliminated 6) Precise product surface is achieved 7) Safety interlock device with the feeder, resistance to wear and tear of the die is maximized 8) Customers are welcome to place orders for special specification Outer packing: Wooden cases
