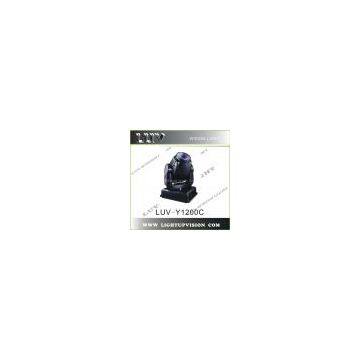

LUV-Y1200C 1200W Moving wash

Brand Name	LUV		Place of Origin	China
Model Number	LUV-Y1200C

E-mail:sales2@lightupvision.com
LUV-Y1200C 1200W Moving wash
 1. Electronic Ballast
 2. 1200W PHILIPS LAMP
 3. Flight case
TECHNICAL REFERENCE
Voltage:  220V  AC/50HZ
Rotated Power Consumption: 1500W
Lamp:  HMI  1200W/short
Channel:  16 DMX512 Channel With 12 Motors
Control Signal:  DMX512
Carton Size:   630*600*890mm
Single Flycase Size:  600*460*890mm
N.W:50kg
G.W:55kg
PERFORMANCE  TRAIT
*Blue LCD, English operation
*Choose four different pan/tilt speed  directly from LCD
*Can choose pan/tilt inverse , control lamp body reset by LCD
*DMX singlely control pan/tilt reset(230-240,push tappet after reseting 3 seconds)and whole reset((230-240,push tappet after reseting 3 seconds)
*Single color plate,5 colors , single step and wheel movement,fast single way rainbow effect,and tunable speed
*0-100% mechanical linear dimming,tunable from full blanking to full opening effect
*Scan range of 450 degrees horizontally and 270 degrees vertically,free and smooth scanning ,accurate positioning
*Accurate movement adjustment of both horizontal and vertical motion and speed,automatically correct funtion
*Each channel has light swap function ,used to make the effect of spot projecting
*12°-17°stepless zooming feature,free tunable
*C.M.Y.ATO color mix,rich colors
*Two fans cooling,cool air blows from besides of heating capsule to heating capsule,and heat can be discharged from radiator in time,so as to ensure all lamp body in temperature range designed, built-in overheat protection,balance heat dissipation
*PFC power factor compensation, even can work when the voltage fluctuate 10V
* In compliance with all safety standards, IP20 protection class,power cables to CE20/22 standard
*Fast and easy to mount,use one set of quarter  turn locks,tight and safe to hung
