A213 T91 Alloy Steel Tubes , HF Hairpin Spiral Welded Fin Tube For Economizers

A213 T91 Alloy Steel Tubes , HF Welded Hairpin Spiral Fin Tube For Economizers
?
ASTM A213?/ A213M:Seamless Ferritic & Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
?
Quick Detail:
?
High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.
?

?
Manufacturing Process:?The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using high frequency resistance welding technique.
?

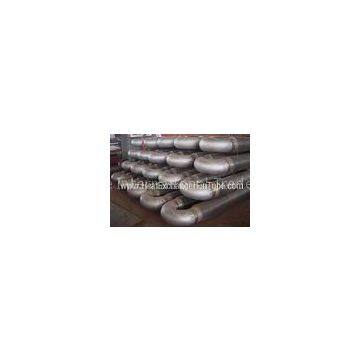

We produce both solid plain and serrated helical welded steel finned tube. And also, all spiral welding tubes could be bent in the middle or at the end of fin tubes, we call it Hairpin tubes.?
?
Acceptance Criteria:
INTERNATIONAL STANDARD FOR DIMENSIONS, TOLERANCES, AND TESTS OF HIGH FREQUENCY RESISTANCE WELDED FINS or the delivery conditions (TDC) of clients.
?
Visual check:?
Un-welded parts of fin, fin damage after fining, copper pollution, tears, wrap etc…
?
Dimensional check:
Fin height, fin spacing, fin inclination, fin corrugation, length of finned & un-finned portion etc…
?
Bending check:?
Ovality, thickness and area reduction.
?
Surface?Coating:?
outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form.
?
Tube End Finish:
Bevel @ (30°~35°)
?
Bevel Root Size
0.5mm~1.5mm
?
Delivery condition
Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of helical welded tubes.
?
Documentation:
It shall include QAP, WPS, PQR& WPQ, raw materials mill certificates, inspection and test samples results and warranty certificate of manufacturer.
?
Applications:
?
The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….
?
Applications:
?
The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….
?
Specifications:
?
A wide range of fin and tube materials could be combinations are available.
?

?
Dimensions Data Sheet We Can Supply.

?
?
