DIN 17175 ST35.8/I Heat Exchanger Welded Fin Tubes 20mmH X 1mmThK X 200FPM

Brand Name	Reliance		Place of Origin	China
Model Number	HFW

Delivery Time:Ex-work within 5~6 weeks after order.
Certification:SGS, ABS, BV, TUV…

DIN 17175 ST35.8/I , 20mmH X 1mmThK X 200FPM , welded heat exchanger fin tube
?
Quick Detail:
?
High Frequency Resistance Welded Helical Steel Fin Tubes is widely used in the recovery of waste heat from boiler flue gas.
?

General HF?welding production capacity	General specifications of HF welding fin tube
Welding Facility: 4 finning machines; Daily production capacity up to 40 tons; HFW Fin type: solid plain and serrated.	Tube OD: 19mm min. Tube Length: 18 meters max. Fin Height: 32 mm max. Fin Thickness: 0.8mm min Fin Pitch: min. 4 mm for solid fins &?3.3mm for serrated fins.

?
Description:
?

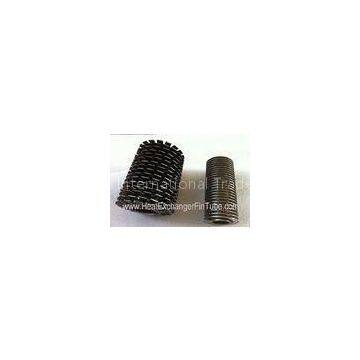

General Manufacturing Process: The fin strip is welded continuously and spirally wound onto a polished bare tube. And the tube and fins are bonded together by using high frequency resistance welding technique.
?
We produce both solid plain and serrated helical welded steel finned tube. And also, all spiral welding tubes could be bent in the middle or at the end of fin tubes, we call it Hairpin tubes.
?
?
Additional Services for Solid helical welded fin tubes:

High frequency welding machine output power supply: 200KW or 300KWThe High Frequency Resistance Welded Spiral Fin Tube quality is assured by hydrostatic or pneumatic tests and tensile tests in order to verify the mechanical bonding between bare tube and fin materials.Acceptance criteria: INTERNATIONAL STANDARD FOR DIMENSIONS, TOLERANCES, AND TESTS OF HIGH FREQUENCY RESISTANCE WELDED FINS or the delivery conditions (TDC) of clients.Visual check: un-welded parts of fin, fin damage after fining, copper pollution, tears, wrap etc…Dimensional check: fin height, fin spacing, fin inclination, fin corrugation, length of finned & un-finned portion etc…Bending check: ovality, thickness and area reduction.Coating: outside-Red oxide zinc phosphate primer and inside volatile corrosion inhibitor (VCI) in water soluble tablet form.Fin end finish: Bevel(30~35degeree)Delivery condition: Tube ends are square cut, free burrs, internally dried and air blown clean, externally coated with varnish at both ends of helical welded tubes. The desiccants are put into the each package for continental transportation as well.Documentation shall include QAP, WPS, PQR& WPQ, raw materials mill certificates, inspection and test samples results and warranty certificate of manufacturer.

?
Applications:
?
The High Frequency Resistance Welded Helical Fin Tubes are widely applied in fired heaters, heat exchanger, boilers, economizers, pre-heaters, coolers, heat pipes, heaters etc….
?
Specifications:
?
A wide range of fin and tube materials could be combinations are available.
?

Items	General Materials	Popular ASTM ?Materials
Core Tube Material	Carbon Steel , Alloy Steel, Heat Resistant Steel, Stainless Steel etc.	10#,20#,15CrMo,Cr5Mo,Cr9Mo,1Cr18Ni9Ti,0Cr18Ni9,????????????????????? 00Cr17Ni14Mo2,SA106B,SA106C, SA192, SA179, ? ? ? ? ? ? ? ? ? ?? SA178,SA214, SA210-A1, SA210-C,TP304/304L/304H, ? ? ? ? ? ? ? TP409/410,TP316/316L,TP321/321L,TP347H,T11,T22,T91,etc. ? ? ? ? ? ? ?
Fins Material?	?Carbon Steel , Alloy Steel, Heat Resistant Steel, Stainless Steel etc.	Q235-BF,08F,08AL, 1Cr18Ni9Ti,?0Cr13, 1Cr13, 0Cr18Ni9, 09CrCuSb,?CS,A1008-B,SPHC, SPCC,?TP304/304L,TP316/316L,TP321/321L,etc.

?
Dimensions Data Sheet We Can Supply.

Solid Helical Steel Fin Tubes Fabrication Range	Solid fins(mm)	Serrated fins
Min	Max	Min	Max
Tube OD(mm)	19	219	19	219
Fin Height(mm)	8	26	8	32
Fin Thickness(mm)	0.8	2.8	1	1.6
Fins Density(mm)	4(250FPM)	20	3.3(303FPM)	20
Tube Length(mm)	N/A	18000	N/A	18000
Additional supply range : (1) Tube swaging process for joint of 2 tubes. (2) Spacer rings (material: steel) are available. (3) One side is solid plain fins and the other is serrated fins, 2 fin types on same tube.

?
?
Competitive Advantage:

We have more than 10,000 square meters workshop, including
