10 inch Line Array Active Sound System Neodymium Woofers For Outdoor Show

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	CVR		Place of Origin	China
Model Number	W-110 & W-118P

Product Description

Delivery Time:5--8 Work Days
Certification:CE,RoHS
10 inch Line Array Active Sound System Neodymium Woofers For Outdoor Show?

DESCRIPTION and APPLICATION:

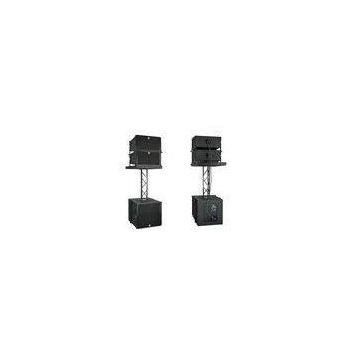

?W-110 is a line array system which is made of one 10” neodymium woofers, two 1.75” titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. Wherever low frequency extension is required, a W-110 will integrate seamlessly with W-118 or W-118P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-110 is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
?W-118/W-118P is dedicated high performance sub-bass system designed to augment the low frequency output of the W-110, W-118/W-118P is a sub-bass enclosure which must be flown with W-110. Its physical dimensions are identical to the W-110 and it is equipped with the same proprietary rigging system. It features with a 18” neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion. The W-118P with Bluetooth features a highly efficient power amp module and incorporated DSP.

Model	W-110 ＆ W-118/W-118P(Active)
Type	Line array system
line array sub-bass system(W-118/W-118P)
Frequency Response	65Hz-20KHz±3dB
35Hz-500Hz±3dB(W-118/W-118P)
Power handling	LF 400W(RMS)800W(PEAK) HF 120W(RMS)240W(PEAK)
800W(RMS)1600W(PEAK)(W-118/W-118P)
Power amp	2X600W/4ohm + 1X900W/8ohm (W-118P)
Amplifier type	Switching power amp, class D circuit
Other functions	Bluetooth,DSP (W-118P)
Sensitivity	LF 96dB(1W@1M) HF 108dB(1W@1M)
109dB(1W@1M)(W-118/W-118P)
Max@S.P.L	LF 122dB(PEAK/1M) HF 125dB(PEAK/1M)
135dB(PEAK/1M)(W-118/W-118P)
LF section	1×10\"(260mm) neodymium woofer 75mm(3in)coil
1×18\"(460mm)woofer 100mm(4in)coil (W-118/W-118P)
Nominal impedance	8 ohm/8 ohm (W-118/W-118P)
HF section	2×1.75\"compression driver with44mm titanium diaphragm
Nominal impedance	16 ohm
Output section	2-channel
Dispersion pattern	110o H×9o V
Surface finish	Black paint
Array design	Arrays of less than 3×W-110 will provide poor dispersion control and are neither recommended nor supported
Speaker cables	LF1(+)1(-) HF 2(+)2(-)
1(+)1(-) (W-118P)
Rigging system	Please refer to the W-110 user\'s manual before any operation
Input connectors	2×NL4MP speakon
Recommend crossover	LF 70Hz-2KHz HF 2KHz-20KHz
35Hz-120Hz(W-118P)
Dimensions	522×595×450mm(W×H×D)
522×510×650mm(W×H×D) (W-118/ W-118P)
Package dimensions	592×665×520mm/0.15cbm
592×735×720mm/0.39cbm (W-118/ W-118P)
Enclosure	Birch Plywood
Net weight	21kg(W-110)/40kg(W-118)/46kg(W-118P)
Gross weight	23kg(W-110)/43kg(W-118)/49kg(W-118P)

?CVR PRO-AUDIO,LET YOUR EARS BE THE JUDGE !

?Guangzhou CVR Pro Audio Co., Ltd is specialized in researching, developing and manufacturing high quality pro audio equipment.Boasting talented professional employees and leading technology, we manufacture and supply a compreh ensive range of professional equipment including line array system, proloudspeaker, subwoofer, minitor speaker and power amplifier. CVR pro audio products have been far sales to over 100 countries abroad,enjoying high reputations and popularitys.Our own modern industrial factory occupies over 5000 square meters, equiped with advanced processing lines and sound online testing systems. R&D department, production, QA, engineering, overseas sales department, domestic sales department and aftersales service are all running well under strict management constructive guidelines.
