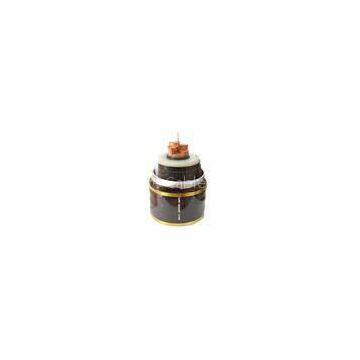

66kv 1c1000sqmm Extra High Voltage Cable Aluminium Conductor XLPE Wire
Negotiable
/ Kilogram
1 Kilogram(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Black EPR Insulating Cable Telecommunication Cabling CHEF80/SA Customized
-
XLPE Insulated High Voltage Cable Power Transmission Cables For Ships
-
Copper Core Electroplated Tin Rubber Insulated Cable for Open Country
-
Aerial Insulated Cable ACSR Wire Wit in Rated Voltage Up to Including 0.6/1kv
-
UV Ray Resistant Low Voltage Cable / Insulated Wire Cable 35kV Mouse Resistant
-
Parallel Bunched Aerial Insulated Cable Aluminum Conductor Composite Core
Product Details
| Brand Name | Jidong | Place of Origin | China | |
Product Description
There are 20KM (500M/Drum with 40 Drums) 66KV 1C1000SQMM Aluinimium Conductor/XLPE Insulated/Corrugated aluminum Armoured/Antitermite HDPE Outer sheathed power cable with super quality in our warehouse, If you have certain projects information For this cable currently, Please contact with us, We can offer a good price to you, and surely with fast delivery term, if you decide to buy this whole lof or part of the lot of drums.
| Sr | Description | Unit | Data specified by the purchaser | Data to be filled by the manufacturer |
| ? | ? | ? | ? | ? |
| 1 | Name of manufacturer | ? | ? | HEBEI NEW BAOFENG WIRE & CABLE CO., LTD. |
| 2 | Country of manufacturer | ? | ? | CHINA |
| 3 | Type of cable | ? | ? | ? |
| 4 | Standard according to which cable is manufactured | ? | ? | IEC STANDARD |
| 5 | Rated voltage | kV | 38/66 | 38/66 |
| 6 | Highest system voltage | kV | 72.5 | 72.5 |
| 7 | System frequency | Hz | 50 | 50 |
| 8 | No of phases per circuit | Nos | 3 | 3 |
| 9 | System earthing | ? | Solidly grounded | One point solidly grounded |
| 10 | Rated short time current of conductor (1 Second) | kA | ? | 94.5/1s |
| 11 | Rated short time current of metal sheath (alone) 1 Second | kA | ? | 46.1/1s |
| 12 | Rated short time current of metal screen (if provided) | kA | ? | ? |
| 13 | Rated short time current of metal sheath and screen | kA | 19 | ? |
| 14 | Duration of short circuit curren | Sec | 1 | 1 |
| 15 | Impulse withstand voltage 1.2 / 50 micro sec wave | kVp | 325 | 325 |
| 16 | Power frequency withstand voltage for 1 Min. | kV(rms) | 140 | 140 |
| 17 | Nominal cross sectional area of conductor & the type of conductor | Sq mm | 630/1000 compacted stranded circular 630/1000 | 1000 compacted stranded circular 1000 |
| 18 | Conductor material | ? | Aluminium | Aluminium |
| 19 | Minimum no. of strands & the diameter before compaction | Nos. / mm | ? | 88/4.12 |
| 20 | Technical details / parameters of Material used for longitudinal water | ? | ? | Water swellable fiber yarn |
