Manual Floating Ball Valves 1/2 - 3 3PC CLAMP END BALL VALVE for Industrial
- T/T L/C D/P D/A
- 7 days
You May Like
-
2000WOG 1PC Type Stainless steel Ball Valve NPT / BSPT / BSPP , WCB / 304S / 316S
-
Screwed End Stainless Steel Check Valve , Swing Type Check Valves 1/2 - 3 Inch
-
150lb Stainless Steel Barrel Nipple SS 304 / 316 Fittings and Couplings
-
Full port Threaded Gate Valve Cf8 / Cf8m 200wog Investment Casting
-
Screwed End Stainless Steel Full Port Globe Valve 200wog With Investment Casting Body
-
Screwed End High Mounting Pad ISO 5211 Ball Valve Wcb / 304 / 316 1/2 - 4 1000wog
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS

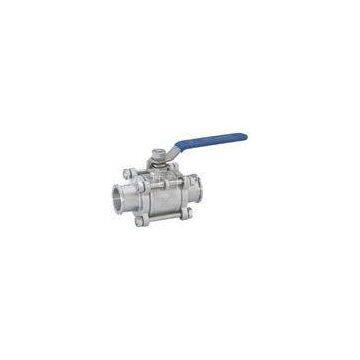

STAINLESS STEEL 3PC CLAMP END BALL VALVE
Description:
? 3PC ball valve?is a form of quarter-turn?valve?which uses a floating ball to control flow through it.
? The 3PC body design allows for the center part of the valve containing the ball, stem & seats to be easily removed from the pipeline.
? ?Clamped type ball valve is easy to be assembled and removed from the pipeline.
? ? ? ? ? ? ? 1) Size: 1/2\" 3/4\" 1\" 1-1/4\" 1-1/2\" 2\" 2-1/2\" 3\"
? ? ? ? ? ? ? 2)?Material:?WCB/304(CF8)/316(CF8M)
? ? ? ?3) Full Port
? ? ? ?4) Blow-Out Proof Stem
? ? ? ?5) Investment Casting Body/Cap
? ? ? ?6)?Applicable medium: Water Oil Gas
? ? ? ?7)?Medium Temp.: -20° C~+150° C
? ? ? ?8) Thread Acc: ANSI B1.20.1, BS21, DIN2999, ISO-7
? ? ? ?9)?Inspection&Testing Acc: API 598
? ? ?RST VALVE?is an ISO9001 certified manufacturer of ?stainless steel/wcb industrial valves:?Ball Valve,?Check valve, Gate Valve, Globe Valve, Y-strainer, pipe fittings etc.
Specification
|
Item No |
Part Name |
Material |
||
|
1 |
Nut |
A2-70 |
||
|
2 |
Spring Washer |
SS304/SS201 |
||
|
3 |
Cap |
CF8M |
CF8 |
WCB |
|
4 |
Body Gasket |
PTFE/RPTFE |
||
|
5 |
Seal Seat |
PTFE/RPTFE |
||
|
6 |
Ball |
316 |
304 |
201/304 |
|
7 |
Body |
CF8M |
CF8 |
WCB |
|
8 |
Thrust Washer |
PTFE |
||
|
9 |
Stem Packing |
PTFE |
||
|
10 |
Gland Nut |
SS304/SS201 |
||
|
11 |
Spring Washer |
SS304/SS201 |
||
|
12 |
Stem Nut |
SS304/SS201 |
||
|
13 |
Handle |
SS201 |
||
|
14 |
Locking Device |
SS201 |
||
|
15 |
Handle Cover |
Plastic |
||
|
16 |
Stem |
316 |
304 |
201/304 |
|
17 |
Bolt |
SS304/SS201 |
| ? | |
| ? | ? |
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?unit: mm
|
DN |
G |
D |
L |
H |
A |
|
15 |
1/2” |
35 |
95 |
68 |
125 |
|
20 |
3/4” |
50.5 |
105 |
70 |
125 |
|
25 |
1” |
50.5 |
115 |
80 |
145 |
|
32 |
1-1/4” |
50.5 |
125 |
84 |
145 |
|
40 |
1-1/2” |
