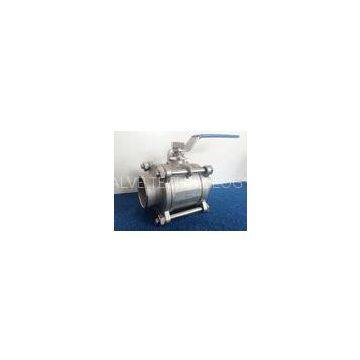

3 Piece Butt-Welding Stainless steel Ball Valve WCB/CF8/CF8M, 1000WOG
- T/T L/C D/P D/A
- 7 days
You May Like
-
Manual Floating Ball Valves 1/2 - 3 3PC CLAMP END BALL VALVE for Industrial
-
2000WOG 1PC Type Stainless steel Ball Valve NPT / BSPT / BSPP , WCB / 304S / 316S
-
Screwed End Stainless Steel Check Valve , Swing Type Check Valves 1/2 - 3 Inch
-
150lb Stainless Steel Barrel Nipple SS 304 / 316 Fittings and Couplings
-
Full port Threaded Gate Valve Cf8 / Cf8m 200wog Investment Casting
-
Screwed End Stainless Steel Full Port Globe Valve 200wog With Investment Casting Body
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
?3 Piece Butt-Welding Stainless steel Ball Valve WCB/CF8/CF8M, 1000WOG
Description:
? ?
?? RST VALVE?is an ISO9001 certified manufacturer of ?stainless steel/wcb industrial valves:?Ball Valve,?Check valve, Gate Valve, Globe Valve, Y-strainer, pipe fittings etc.
3PC ball valve?is a form of quarter-turn?valve?which uses a floating ball to control flow through it.
The 3PC body design allows for the center part of the valve containing the ball, stem & seats to be easily removed from the pipeline.
? ? ? ? ? ? ? ?1)?Size: 1/4\", 3/8\", 1/2\", 3/4\", 1\", 1-1/4\", 1-1/2\", 2\", 2-1/2\", 3\", 4\"?
? ? ? ? 2) Full Port
? ? ? ? 3)?Blow-Out Proof Stem
? ? ? ? 4) Investment Casting Body/Cap
? ? ? ? 5)?Medium Temp.: -20° C~+180° C
? ? ? ? 6)?Suitable Medium: Water, Gas, Oil, Air and Some Corrosive Liquid
? ? ? ? 7)?Design Standard: ASME B16.34
? ? ? ? 8) Inspection&Testing Acc: API 598
? ? ? ? 9) Butt-Welding End
? ? ? ? ? ? ??10)?ISO-5211 Mounting Pad for Actuator Available
? ? ? ? ? ? ? 11) End: Butt-welding
? ? ? ? ? ? ? 12) OEM accepted
Specification
|
Item No |
Part Name |
Material |
||
|
1 |
Nut |
A2-70 |
||
|
2 |
Spring Washer |
SS304/SS201 |
||
|
3 |
Cap |
CF8M |
CF8 |
WCB |
|
4 |
Body Gasket |
PTFE/RPTFE |
||
|
5 |
Seal Seat |
PTFE/RPTFE |
||
|
6 |
Ball |
316 |
304 |
201/304 |
|
7 |
Body |
CF8M |
CF8 |
WCB |
|
8 |
Thrust Washer |
PTFE |
||
|
9 |
Stem Packing |
PTFE |
||
|
10 |
Gland Nut |
SS304/SS201 |
||
|
11 |
Spring Washer |
SS304/SS201 |
||
|
12 |
Stem Nut |
SS304/SS201 |
||
|
13 |
Handle |
SS201 |
||
|
14 |
Locking Device |
SS201 |
||
|
15 |
Handle Cover |
Plastic |
||
|
16 |
Stem |
316 |
304 |
201/304 |
|
17 |
Bolt |
SS304/SS201 |
|
Size |
DN |
L |
H |
W |
C |
End |
|
1/4” |
8 |
63 |
54 |
100 |
13 |
Butt-Welding .... |
|
3/8” |
10 |
63 |
54 |
100 |
13 |
|
|
1/2” |
15 |
65 |
58.5 |
100 |
13.5 |
|
|
3/4” |
20 |
76 |
64.5 |
120 |
14.5 |
|
|
1” |
25 |
86 |
