Product Details
| Place of Origin | China | |
| Model Number | SJ-45-YT2600 |
Product Description

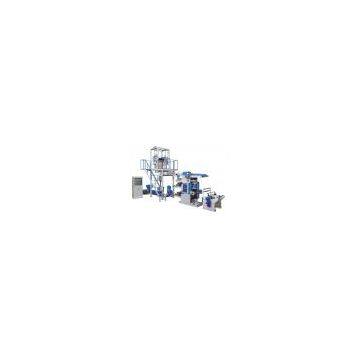

SJ-YT Film blowing flexible printing connect-line set
1.The machine body is U-steel frame,and main motor with inverter,traction with inverter,single winder.
2.Suitable material:LDPE,HDPE,LLDPE and agriculture film.
3.Can print all kinds of plasitc film,print two sides.
4.360 printing precision,printing effect is fine.
|
Model |
SJ-45-YT2600 |
SJ-50-YT2800 |
SJ-55-YT21000 |
|
Applied Materials |
LDPE.HDPE.LLDPE |
LDPE.HDPE.LLDPE |
LDPE.HDPE.LLDPE |
|
Screw Diameter |
45mm |
50m |
55mm |
|
Screw L/D |
28:1 |
28:1 |
28:1 |
|
Main Motor Power |
11Kw |
15Kw |
18.5Kw |
|
Extrusion Output |
35kg /h |
50Kg /h |
65Kg /h |
|
Machine Head |
φ60, φ 100 |
φ80, φ150 |
φ100, φ200 |
|
Max. Folding Width |
600mm |
800mm |
1000mm |
|
Thickness of Film |
0.01 -0.10mm |
0.01 -0.10mm |
0.01 -0.10mm |
|
Length Of Printing |
191 -1200mm |
191 -1200mm |
191 -1200mm |
|
Printing Width |
600mm |
800mm |
1000mm |
|
Total Power |
28Kw |
32Kw |
40kw |
|
Weight of Machine |
3.5T |
4T |
5T |
|
Overall Dimension |
6000× 2400 × 4000mm |
6200 ×2600 × 4300mm |
6400 ×2800 × 4800mm |
