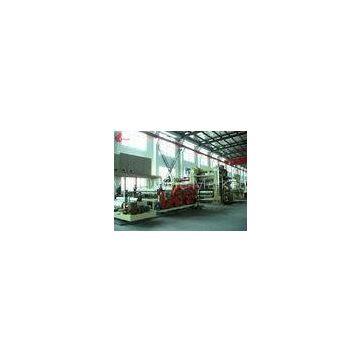

Oil Heating PVC Calender Machine 4 Roll Anti Abrasive For Making Rubberized Fabric

iterms

the name of the equipment

1

500L high-speed mixer

2

100L Kneader mixer

3

26″X(qián)84″L Rolling turbine

4

24″X(qián)72″L Rolling turbine

5

10″filter

6

26″X(qián)90 ″calender

7

Assembly Equipment

8

DC motor and control equipment

9

Temperature control system of calendar

10

4 Conveyors and 3 waste scrap of leading machine

Iterm

Name

standard

1-1

type

Reverse “L” Four roller calender

1-2

Size of Roller

26″(660M/M)X90″L(2300M/M)

1-3

Type of Roller

4 Drilling wheels
Texture : Cold shock hardfacing alloy cast iron

1-4

The width of production

79″-87″ (2000-2200M/M)

1-5

Main motor

?
2 ×DC 90KW,2 ×DC 110KW

1-6

Main reduction?gears

Four independent type combination

1-7

Rotate speed of roller

6-60M/MIN

1-8

gap adjustment

digital display, high-low two stage speed adjustment

1-9

Parts of roller

Upper roller: overhang
Middle roller: gap eliminated
Bottom of roller: preload device

1-10

Main bearing lubrication

Forced lubrication oil cycling

1-11

Security protection

Emergency safety brake, Loss of oil pressure protection by closing down, fault indicating lamp and other type of open the device of hydraulic type power failure

Type

SY-4ΓФ560ｘ1830

SY-4ΓФ610ｘ2030

SY-4ΓФ660ｘ2300

SY-4ΓФ760ｘ2800

SY-4ΓФ860ｘ4000

Roller Specifications (mm)

Ф560ｘ1830

Ф610ｘ2030

Ф660ｘ2300

Ф760ｘ2800

Ф860ｘ4000

Thickness of rolled products(mm)

0.08-0.8

0.08-0.8

0.08-0.8

0.08-0.8

0.09-0.35

Width rolled products (mm)

1400-1550

1600-1750

1900-2050

2300-2500

3000-3200

Main motor power(KW)

45KWｘ2; 55KWｘ2

55KWｘ2; 75KWｘ2

75KWｘ2; 90KWｘ2

90KWｘ2; 110KWｘ2

110KWｘ2;150KWｘ2
