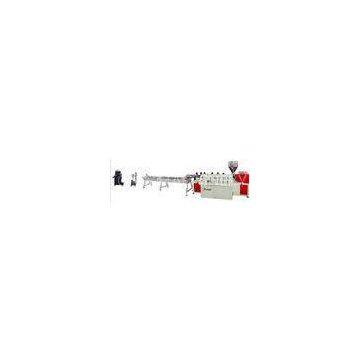

Bottle Flakes Plastic Pelletizing Machine , LDPE Pelletizer Extrusion Line for PET Flakes
- T/T L/C D/P D/A
- 7 days
You May Like
-
LDPE Film Plastic Granules Machine / Water Ring Cutting Granulate Single Screw Extruder
-
Plastics Recycling PET Plastic Granules Making Machine / PET Bottle Flakes Plastic Extrusion Line
-
High Efficiency PET Plastic Granules Making Machine for Wasted Film / Bottle Flakes
-
Automatic PE PP Plastic Recycling Granulator Plastic Pellet Making Machine
-
LDPE Plastic Granules Plastic Pelletizing Machine / PP Film Recycled Stable Extrusion Line
-
Automatic Feeding Film Granule Plastic Recycling Equipment PP Plastic Pellet Making Machine
Product Details
| Brand Name | YATONG | Place of Origin | China | |
| Model Number | 150kg |
Product Description
Certification:CE ISO
Bottle Flakes Plastic Granules Machine , LDPE Pelletizer Extrusion Line
QUICK DETAIL :
1. HDPE LDPEfilm flakes extruding machine
2. CE certificate
3. Side force feeding
4. Suitable: PP PE HDPE LDPE LLDPE film, flake
?
Description:
plastic flake granulating machine is?mainly applied to pelletize Crushed (rigid) materials,
bottle flakes & agglomerated films, etc.
This type pelletizing line has special screw design, effective degassing and filter (Hydraulic screen changer) system, with stable output and long service life.
Machines are highly-automatic, only need 2 workers for operating the whole pelletizing production line. One worker for controlling the Electric control panel, one for feeding materials and changing Hydraulic Screen Changer.
HDPE flake granulating machine Applications:
Applicable?plastic?materials:?PE,?HDPE,?LDPE,PP,?BOPP?etc
Material?shapes:?bottle flakes, crushed film/bags and regrind material
Note:?depending?on?different?material?properties,?various?downstream?equipments?are?needed
|
Technical Parameter |
SJ75 single screw extruder |
Screw diameter |
75mm |
|
L/D |
33:1 |
||
|
Screw material |
38CrMoALA |
||
|
Screw nitriding depth |
0.5-0.7mm |
||
|
Screw surface rigidity |
HV800-900 |
||
|
Main motor power |
37kw |
||
|
Barrel heating zone |
4zones |
||
|
Gearbox |
Rigidity gear surface , thrust bearing , low noise |
||
|
Capacity |
Around150kg/h |
||
|
Water tank |
Length |
6000mm |
|
|
Material |
All elements contact with water is stainless steel |
||
|
Air blowing fan |
Fan power |
2.2kw |
|
|
Function |
Drying strands |
||
|
Pelletizer |
Pelletizing motor |
2.2kw |
|
|
Control box |
Temperature controller |
OMRON |
|
|
Contactor |
SCHNEIDER or SIEMENS |
||
|
Frequency invertor |
DELTA or depending on customer |
||
|
Machine center height |
1000mm |
||
|
Power supply |
380V/50HZ or depending on customer requirement |
REMARK : if the equipment or technological parameters have some change , we shall not make a notice separately .
