Rubber Open Mixing Mill RM100 Series from MACCSY MACHINERY
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Description

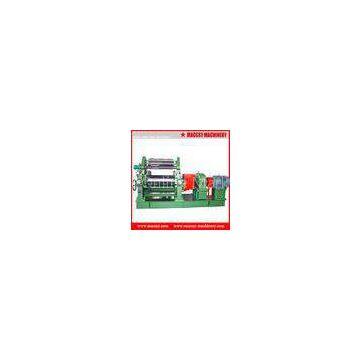

Photo of?Rubber Open Mixing Mill RM100 Series from MACCSY MACHINERY
Technical Parameters
| Model | RM100/160 | RM100/250 | RM100/360 | RM100/400 | RM100/450 | RM100/550 | RM100/560 |
| Dia. of roll | 160mm | 250mm | 360mm | 400mm | 450mm | 550mm | 560mm |
| Working length | 320mm | 620mm | 900mm | 1000mm | 1200mm | 1500mm | 1530mm |
| Speed of front rolling line | 9m/min | 15.2m/min | 16.7m/min | 18.65m/min | 24m/min | 28m/min | 29.85m/min |
| Ratio of front-back rolling speed | 1:1.35 | 1:1.1 | 1:1.25 | 1:1.27 | 1:1.27 | 1:1.25 | 1:1.2 |
| Max distance of rolls | 4.5mm | 8mm | 10mm | 10mm | 12mm | 16mm | 15mm |
| Loading of once | 1-2kg | 10-15kg | 20-25kg | 18-35kg | 50kg | 50-60kg | 50-65kg |
| Power of motor | 5.5KW | 18.5KW | 30KW | 45KW | 55KW | 95KW | 95KW |
| Overall Dimension |
1133*920* 1394mm |
3200*1350* 1450mm |
2600*1840* 1895mm |
4477*1850* 1800mm |
5173*1865* 1640mm |
7116*2736* 2045mm |
6155*2282* 2000mm |
| Weight | 1200kg | 3500kg | 6500kg | 7900kg | 15000kg | 22000kg | 22500kg |
