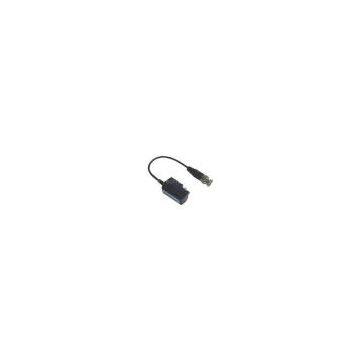

single passive video balun
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | elinx | Place of Origin | China | |
| Model Number | ust102ep |
Product Description
Attenuation
DC to 5 Mhz: 1.5 dB max
Common-mode rejection
15KHz to 5 Mhz: 60 dB typ
Impedance
Coax Cable, Male BNC (or RCA) 75 ohms
UTP, Screw Terminals 100 ohms
Wire Type
Network Wiring: One Unshielded Twisted Pair 24-16 AWG (0.5-1.31mm) per signal
Category Type: Cat 2 or better
Impedance: 100 ± 20 ohms
DC Loop Resistance: 26 ohms max
Differential Capacitance: 19 pF/ft max
Wire Length, camera to monitor including coax, 1, 000 ft (300 m), can be up to 2000ft max (600m) B/W signal
Connector Interfaces
Video: Male BNC connector with 150mm coxial cable
Network Interface: 2 Screw Terminals for UTP pair cable
Environmental
Temperature: 0 to +50° C
Humidity (non-condensing): 0 to 95%
ESD Susceptibility (200 pf probe) : 20 KV
Mechanical
Dimensions no excluding BNC: 22*36*38mm with 150mm coxial cable
Weight: 30g
Material: Black ABS
Mounting: No needed
Package: Blister Card
