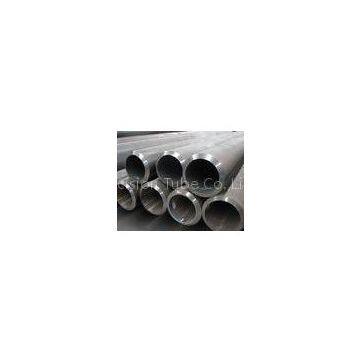

Seamless boiler tubes 3.OD Range 6mm 16mm cold rolled for heat-exchange
- T/T L/C D/P D/A
- 7 days
You May Like
-
Seamless Boiler Tubes cold drawing JIS3454 / JIS3455 / JIS3456 / JIS3461
-
BS3059 seamless boiler steel tube grade 360 440 243 with IBR Form IIIB
-
ASTM A335 Seamless Metal Tubes rade P11 P22 P5 P9 for fertilizer plants
-
ASTM A333 Seamless and welded steel pipe for low- Temperature
-
ASTM A209 Alloy seamless steel pipe for boiler and Superheater
-
ASTM A53 / ASTM A106 / API5L seamless boiler tubes for similar heat transfer
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Seamless boiler tubes 3.OD Range 6mm – 16mm cold rolled for heat-exchange
Quick?Detail:
ASTM A106/API 5L Seamless steel tubes for manufacturing pipelines ,vessels ,equipment and mechanical structures
Standard: ASTM A106/API5L
OD. Range:6mm – 16”mm
Wall thickness: 1mm-36mm
Length: Max length 12M
Type: Seamless boiler tube
Packaging detail: Bundles with plastic paper packaged or wooden box package
Delivery date: 10-30days
Description:
ASTM A106/API5L Boiler seamless steel tube used for heat-exchange, steam, condensers and similar heat transfer apparatus, high temperature service
OD. Range:6mm – 16”mm
Wall thickness: 1mm-36mm
Length: Max length 12M
Type: Seamless boiler tube
Packaging detail: Bundles with plastic paper packaged or wooden box package
Technique: cold drawing, cold rolled
Applications:
heat?exchangers?tubes
Steam?tubes
Condensers?tubes
similar?heat?transfer?apparatus?tubes
high?temperature?service
seamless?Heat?Exchanger?Tubes
Seamless boiler tube
Specifications:
Grade?and?Chemical?Composition?(?％?)
|
Grade |
C≤ |
Mn |
P≤ |
S≤ |
Si≥ |
Cr≤ |
Cu≤ |
Mo≤ |
Ni≤ |
V≤ |
|
A |
0.25 |
0.27-0.93 |
0.035 |
0.035 |
0.10 |
0.40 |
0.40 |
0.15 |
0.40 |
0.08 |
|
B |
0.30 |
0.29-1.06 |
0.035 |
0.035 |
0.10 |
0.40 |
0.40 |
0.15 |
0.40 |
0.08 |
|
C |
0.35 |
0.29-1.06 |
0.035 |
0.035 |
0.10 |
0.40 |
0.40 |
0.15 |
0.40 |
0.08 |
Mechanical?properties
|
Grade |
Tensile?Strength?Rm?(Mpa) |
Yield?Point?(Mpa) |
Elongation?A?% |
Delivery?Condition |
|
A |
≥?330 |
≥?205 |
20 |
Annealed |
|
B |
≥?415 |
≥?240 |
20 |
Annealed |
|
C |
≥?485 |
≥?275 |
20 |
Annealed |
Tolerance
|
Pipe?Type |
Pipe?Sizes |
Tolerances |
|
|
Cold?Drawn |
OD |
≤?48.3mm |
±?0.40mm |
|
≥?60.3mm |
±?1%mm |
||
|
WT |
±?12.5% |
Competitive?Advantage:
Good?Quality?and?services?but?competiveness?price.
