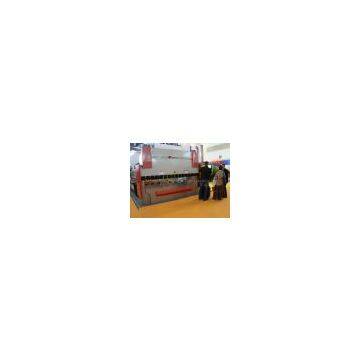

Plate Bending Machine

Plare Bending Machine MBC13032

1  GENERAL SPECIFICATIONS

MASTEEL MBC/MBHS SERIES CNC PRESS BRAKE provide bending with high precision and speed with the use of modern techniques in the area of electronics, mechanics and hydraulics. We brings not only accuracy and work efficiency but also safety .The precision repeatability to MASTEEL MBC/MBHS SERIES CNC PRESS BRAKE performing is achieved by synchronizing the hydraulic cylinders with the use of advanced proportional valve control. With automatic indexing of the axes at the start of running process, calibration is provided. Data inputs of material thickness, type and length through an user friendly software enables the control to calculate and provide the following standard control features:

Standard KV-2005 CNC control with 320x240 pixels graphic display for MBC series, standard KV-2004 CNC control with 11" TFT screen and interactive 2D graphic editor for MBHS series

0.0004" high resolution linear scales provide precision dual ram position feedback

Bosch-Rexroth Closed-loop Proportional Hydraulic position control:

repeatability at ±0.0004" and parallelism at ±0.0004"

Y1, Y2 Programmable independently in angle or position

Ram tilt adjustment at±0.5"

Hydraulically Synchronized ram parallelism control compensates uneven force on the bend by means of hydro-electrical technique

Programmable ram delay control at bending position under adjustable pressure

Servo CNC back gauge with precision ball screw and linear guide way ensures unsurpassed rigidity and high productivity speed

Back gauge position speed at 500 IPM, repeatability at ±0.001"

Automatic or programmable back gauge retract feature

Auto and programmable pressure control

Programmable ram top stop and slow bending position

Programmable bending speed

Automatic conversion: Inch / mm

Promecam punch clamping system with quick release on braked under less than 320Ton

2 STANDARD COMPONENTS

Standard KV-2005 CNC control with 320x240 pixels graphic display for MBC series, standard KV-2004 CNC control with 11" TFT screen and interactive 2D graphic editor for MBHS series

Original Givi linear encoders

Original Eurotherm servo motor

Original Eurotherm servo driver

Original BOSCH-REXROTH servo hydraulic system

Original Parker oil seal from America

Original EMB hydraulic fittings

HIWIN ballscrews

HIWIN linear guideway

SIEMENS and SCHNEIDER electrical components

Original BOSCH-REXROTH pump

Original BOSCH-REXROTH filter

Original MASTEEL brand die and punch

Siemens main motor

 3 SPECIFICATIONS
