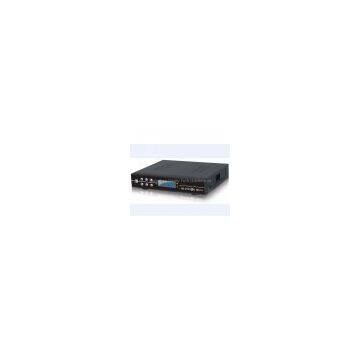

3.5" SATA Full 1080P HD Media Player Recorder (Chipset: Realtek1283)

3.5" SATA Full 1080P HD Media player Recorder (Chipset: Realtek1283)

Model No: HD18R

Features:

1. HDMI interface for digital audio and high-definition video up to 1080p, better six times clarity of DVD

2. Composite interface (RCA, yellow/white/red) for analog AV connection

3. Video output resolution includes 480i (using the composite interface), or 480p, 576p, 720i, 720p, 1080i, and 1080p (available when using the HDMI interface)

4. Support LAN, &NAS, USB WIFI Function (802.11 B/G/N) (Optional)

5. Support play with PGS subtitle of Blue ray and support super 8 characters blue ray LCD display

6. Stereo or multi-channel digital surround audio output

7. Support MKV, TS, M2TS, TP, TRP, AVI, WMV, RM, RMVB, MPEG, MPG, MP4, VOB, MOV, ISO, DAT, ASF (up to 1920x1080P);

8. Support H.264 (AVC HD), VC-1(WMV-HD), MPEG-2 HD, MPEG-1, MPEG-4, XVID etc

9. Support Audio format: MP3, WMA, AAC, WAV, OGG, FLAC, REAL audio, Alac.

10. Support photo format: JPEG, BMP, GIF, PNG, TIFF, support Maximum definition 8000*8000 photos;

11. 3.5 inch portable retractable hard drive tray, support external SATA CD-ROM and USB CD-ROM

12. Support U-HDD, USB, SD/MMC/MS, internal HDD, between storage devices and enables the file copy, delete function.

13. Support USB connect with PC can copy files from hard drive directly.

14. Support external USB R/RM, playing the R/RM movie can copy files from hard drive directly

15. Support network multimedia files browsing and can develop to Internet functions via LAN RJ-45 Interface

16. HDMI 1.3, support 1920x1080p full HD output;

17. Support Dual digital audios output by SPDIF or COAX

18. Support CVBS output;

19. Support multinational OSD language.

20. Supports photos slide view, as well as background music preview, playback, multi-switching effects, and manual view and so on

21. Support e-book reading function.

22. Support subtitle:*ASS,*SMI,*SRT,*SUB,*IDX+SUB,*PGS etc.

23. Support play video, audio, photo from LAN network.

24. Support DTS, DTS-HD, DUBLY, DUBLY HD, and AC3...

25. Support video input playing and video input recording

26. Built-in high power supply, a variety of external USB mobile hard disk, to fully ensure the power and stability.

27. Can support picture playback, preview, slide view, manual View

28. Plug-n-Play USB 2.0 Support

a. USB storage device with a USB connector

b. Portable media players with USB connector

c. Digital cameras with USB connector

29. DVB-T with DVB-T tuner, DVB-T PVR/Time shift, (Optional) need add $10/PCS

30. Personal Video Recorder: AV IN

31. Internet Browser: Internet channels such as PPS, YouTube, Flicker, RSS news, etc

Technical Standard:

Video:

RM/RMVB: Support Real8, 9, 10, 11 decoding, support 1440 * 720 up to 2.8Mbps

MPEG: DAT, AVI, MPG MPEG-2: VOB DVD/D5, AVI, support DVD inside SUB multinational subtitles, Support to change the subtitle language by Remote control;

Support DVD with IFO, up to 10Mbp/s.

MPEG4: Divx3, Divx3.11, divx4/5, xvid, MKV, VC-1(WMV-HD), BD, BD-IS; Blue ray DVD

FULL HD 1080P decoding and playing, Support PGS and support super 8 characters blue ray LCD display

Audio: MP3, WMA, OGG, WAV, OGG, FLAC, REAL audio, Alas bit rate: 32Kb/s ~ 320Kb/s

MP3 WMA Support ID3

Stereo audio output: 2.0V+0.2Vp

Frequency Range: 20Hz-20 KHz<2db (1 KHz 0db)

Dynamic range: greater than 80 dB (1kHz0dB) THD: 0.04%

Audio distortion: lower than test level, SNR: >=80dB (1kHz0dB)

Crosstalk: more than 80 dB (1kHz0dB)

Photo: JPEG, BMP, GIF, PNG, TIFF etc. support up to 8000*8000 photos

Output: Support for traditional television AV, Coaxial, high-definition HDMI output

(1) AV: 720 * 576(480)   (2) HDMI: 1024*720   (3) HDMI 1920 * 1080P

Card Reader: SD/MMC/MS (1G~16G)

HOST: From the theory, can be driven most of the external USB storage devices, such as card reader, USB HUB, U disk, WIFI, mobile hard Disk, etc.

Document Management: Support file copy / delete

Product Size: 290mm (L) *240 mm (W) *60 mm (H)

Power: Power: 100V~240V output, DC: 12V 3A, Maximum Wattage: 10W

WIFI distance: Availability Distance: 90-300M; USB WIFI dongle add $8.5/PCS

Packing list:

1, Mainframe   X 1PCS

2, Remote Control   X 1PCS

3, AV cable   X 1PCS

4, Comical Cable   X 1PCS

5, HDMI Cable   X 1PCS (Optional)

6, Component Cable   X 1PCS (Optional)

7, SATA Cable   X 1PCS

8, User Manual Instruction   X 1PCS
