Custom Casting Machine Bevel Gears Shafts For Electrical And Construction

Industry Focus

Appliance/ Automotive/ Agricultural
Electronics/ Industrial/ Marine
Mining/ Hydraulics/ Valves
Oil and Gas/ Electrical/ Construction

Intended Application

Shafts
Valve Components
Automatic Door Components
Cable/ Electronic Connector
Fire Suppression System Components
Fittings/ Fasteners
Gears/ Hardware
Roller Bearings

Lead Times Available
?

Max: 2 Weeks (On Initial Order)
Rush Services Available

Industry Standards

ISO 9001:2008
PPAP
RoHS Compliant

Additional Capabilities

CAD Design Services
CAM Programming Services
Coordinate Measuring Machines (CMM)
Reverse Engineering

Equipment List

From simple 2-axis turning to 7-axis, turn-mill-drill CNC Swiss-type machines, we are equipped with a full line of CNC equipment from the following manufactures:
molding machines/ stamping machines
automatic lathe machines/ spring machines.

Automation Capabilities

Continuous Machining

Material (Metals)

Alloy Steels/ Aluminum/ Brass/ Bronze Alloys
Carbon Steel/ Copper/ Stainless Steel/ Tool Steel
Cold Rolled Steel/ Bearing Steel

Material?
(Plastic Polymers)

ABS/ Delrin/ Nylon/ PVC

Processes
(Special Capabilities)

Broaching/ Hobbing/ Slotting

Tolerance

±0.0002 in
±0.0051 mm

Item

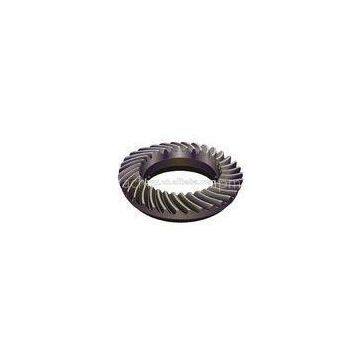

Large Steel Custom Bevel Gears For Construction planetary gear reducer

Machining equipments

CNC center, CNC milling machine, CNC turning machine, CNC lathes,5 axis machine etc.

Materials

Aluminum, Steel, Stainless steel, Brass, Copper, Bronze, ABS, PC, PO, POM, Nylon, Teflon etc.

Accuracy
?

Processing

Designing drawing,Opening mould/tooling,Precision machining(forging, Machining,Hobbing, Milling, Shaping, Shaving, Grinding,Heat treatment.)?Inspection, Packing and shipping

Heat Treatment Method

Carburizing, Induction, Flame, Nitriding

Main Machines

NC gear hobbing machines,NC Gear Shapers(Gealson,Moude),NC lathe,NC gear Shaving machines,NC gear millling,Nc gear grinding Machines.?

Surface finish

Anodize, Plating, Brushing, Polishing, Blackened, Powder coating, ? Sandblasting, Laser engraving etc.

Inspection Equipment

CMM, Projection, Calipers, Micro caliper, Thread Micro caliper, Pin ? gauge, Calipe
