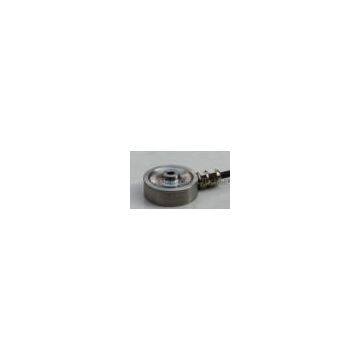

Compression Load Cell
- 2000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | QY | Place of Origin | China | |
| Model Number | QS-11 |
Product Description
Product Characteristics:
QY column weighing load cell. application: material tank scales, a variety of compression force measurement occasions.
Technical Parameter:
Rated load 1kg, 10kg, 20kg, 50kg, 100kg, 500kg
Sensitivity (2.0±0.1%) mv/v
Combined error ±0.03% F.S
Creep Error(30min) ±0.03% F.S
Zero balance ±1% F.S
Temp. effect on zero: ±0.02% F.S/10℃
Temp. effect on Span: ±0.02% F.S/10℃
Input resistance: 750±5Ω
Output resistance: 703±2Ω
Insulation resistance: ≥5000MΩ
Operating Temp. Range -30~+70℃
Maximum safe over load: 150%F.S
Ultimate over load: 200%F.S
Recommend excitation: 10~12V DC
Maximum excitation: 15V DC
Sealing Class: IP68
Element material: A :Alloy Steel, SS:Stainless Steel
Cable: Length=L:3m
Citation GB/T7551-1997/ OIML R60
Mode of Connection Red(Input+),Black(Input-),Green(Output+),White(Output-)
