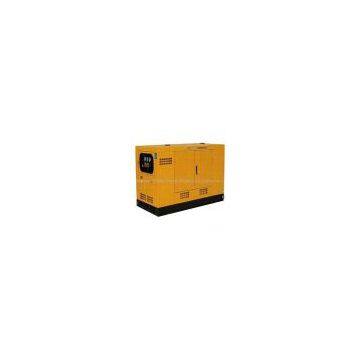

Canopy Diesel Generator

THE SPECIFICATIONS OF THE GENERATING SET:

1.Model:TLR8GF to TLR1000GF

2.Rated output:8KW(10KVA) to 1000KW(1250KVA)

3.Basic specifications: 230 / 400V AC, 50Hz / 60Hz, 0.8Pf , three phase four wires

4.Character:  base fuel tank for 8 hours

5.Use: can be used for the open type and the soundproof type , automatic type

6.Control system:

      a) Automatic alarm system: the unit has the acousto-optics alarm

          system and arrestor for any situation as the start defeat, the water

          is over temperature, the oil pulls down, over speed, over load and

          over current

      b) Operation display:

          i) Unit voltage, tri-phase load current and frequency display

          ii) Water temperature, oil pressure display

          iii) Fuel level, fuel temperature display

          iv) Audible and visual alarm lamps and buzzers

7.Supply standard collocation:

      a) Diesel engine with all accessories, 3 filter, electric systems

      b) Alternator

      c) Steel structure

      d) Fan and water tank cooling system

      e) Flange connector

      f) 12 / 24V starting motor and charge engine

      g) Air cleaner, fuel cleaner, oil cleaner

      h) On-board control panel

      i) MCCB air conservation switch

      j) 12 / 24V starting accumulator and Battery line

      k) Set shock absorber

8.Package: wooden case

THE SPECIFICATIONS OF THE ENGINE:

1. Rated speed : 1500rpm, four strokes, inline. Fan and water tank cooling system, up to the ISO3046 standard

2. Engine model: 495(Z)D, R4105(Z)D, R6105(Z)(AZL)D, 6113D, 6160D, 6170D

3. Rated output: from 13.5kW (16.88kVA) to1000kW (1250kVA)

4. Character of the engine:

      a) High efficiency. Low exhaust,good start eddiciency ;

      b) 24V DC start motor ;

      c) Egnine driven alternator ;

      d) High pressure oil pump ;

      e) Turbine charge ;

      f) Three filters ;

      g) SAE flywheel shell .

THE SPECIFICATIONS OF THE ALTERNATOR:

The world first class alternator, up to the  GB755, BS5000, VDE0530, IEC34-1, CSA22.2, AS2359 standard,brushless and self-excitation,it be can supply excitation in many cases:

    a) STAMFORD/ MARATHON/ LEROY SOMER/ QIANGHUI ;

    b) Standard pitch winding can be inhibit current’s nterruption ;

    c) Insulation Class: H  Protection class: H ;

    d) Frequency at stable state:  ≤±1.0% ;

e) Telephone’s interference: THF < 2%, TIF < 50 ;
