Pancake Truck Scale Tension Compression Load Cell of Alloy Steel
- T/T L/C D/P D/A
- 7 days
You May Like
-
Single Stainless Steel Testing Compressive Load Cell Strain Gauge 10kg 100kg
-
Thermal Shock Testers
-
0.1199.9 m/s2 Acceleration EMT220 Digital Vibration Meter with Temperature-Measuring
-
XC3020-100PG84I - xilinx -XC3000 Series Field Programmable Gate Arrays (XC3000A/L, XC3100A/L)
-
High Precision Bending Beam Load Cell
-
Smart 50Hz / 60Hz Micro Grid Tie Inverter 500 Watt with Power Automatically Locked
Product Details
| Brand Name | tecsis | Place of Origin | China | |
| Model Number | F2822 |
Product Description

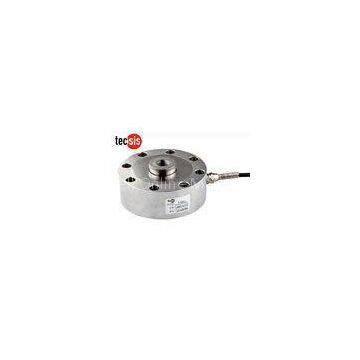

Pancake Truck Scale Tension Compression Load Cell of Alloy Steel
Features :
Model:F2822 Tension and compression load cell High comprehensive precision, high stability Made of?alloy steel Capacity:0.5t~50t Configuration:?Pancake typeDescription:
F2822 Pancake Load Cell (Tension Base)?is specially designed for high capacity applications in both tension and compression.
The load cell includes eight bolt-down holes along its outer diameter for ease of mounting.
The cell is available in alloy steel?and?comes in various optional versions such as?amplified version readily available.
The standard F2822 Pancake Load Cell offers easy customization and modification as per need and most models are in our inventory making them available for quick delivery.?
The Pancake Load Cell uses metal foil strain gauge technology and is manufactured in Shenzhen China.?
The protection class is IP67, waterproof, it is suitable for harsh environment.
Mainly used for platform scales, truck?scales, floor scales and industrial weighing?systems.
Applications:
Mainly used for platform scales, truck?scales, floor scales and industrial weighing?systems.
Technical parameters:
|
Specifications |
Technique |
|
Rated output |
2.0±1%mV/V |
|
Zero balance |
±1% F.S. |
|
Non-linearity |
0.05% F.S. |
|
Hysteresis |
0.03% F.S. |
|
Repeatability |
0.05% F.S. |
|
Creep (30min) |
0.05% F.S. |
|
Temp. effect on output |
0.03% F.S. / 10oC |
|
Temp. effect on zero |
0.03% F.S. / 10oC |
|
Input impedance |
7500±10Ω |
|
Output impedance |
700±5Ω |
|
Insulation |
≥5000MΩ / 50VDC |
|
Recommended excitation |
10V |
|
Maximum excitation |
15V |
|
Compensated temp. range |
- 10~60oC |
|
Operation temp. range |
- 20~80oC |
|
Safe overload |
150% F.S. |
|
Ultimate overload |
200% F.S. |
|
Cable size |
?5×3000 mm |
|
Protection class |
IP67 |
|
Cable color code |
Input: Red(+) Black(-); Output: Green(+) White(-); |
Size and capacity:
Schematic Wiring Diagram :
