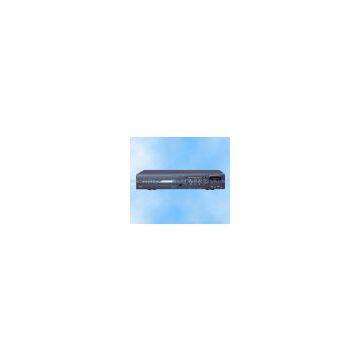

4 Channel H.264 Real Time Stand-alone DVR

Item

Specification

Compression Format

H.264

Video System

NTSC/PAL

Video Input

Composite: 1.0Vp-p/75O,BNC?

Monitor Output

Composite: 1.0Vp-p/75O,BNC? video

VGA Output

Analogue RGB 60Hz 1024x768,800x600,600x480

Resolution

Display: NTSC(720x480)     PAL(720?76)

Audio Input

-8Db22kO,RCA connector?

Audio Output

-8Db3kO,RCA connector?

Alarm Input

4

Alarm Output

1

Frame and Resolution

  CIF:NTSC 120fps /352x240    PAL 100fps /352x288                                                           1/2D1:NTSC 60fps  /720x240    PAL  50fps /720x240                                                        D1 :NTSC 30fps  /720x480    PAL  25fps /720x576

Occupation Space

All 4channels record at high quality mode:800M/H

HDD Port

SATA hard disk

Network Port

        10M/100M Ethernet port

Confidential Function

User and administrator Password Protection

Power Supply

DC:12V/3A

Backup

Network/USB disk/ USB Movable Hard disk/USB DVD ROM

Email

Support email function

Network function

IE browser monitoring/playback and setup/mobile monitoring/email for alarm/DDNS

Power Consumption (No  HDD)

20W

Environment

Work Temp:+5 ~ +50;Storage Temp:-20~ +70;

Dimension

330mm*45mm*0mm

Weight

3.2kg (No HDD)
