FWDM LGX module MUX DEMUX with 12 LC ports , 1310 nm / 1490 nm / 1550nm

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GB-Link/OEM		Place of Origin	China
Model Number	GBWM-F-LGX

Delivery Time:5-7 days
Certification:ISO ROHS,

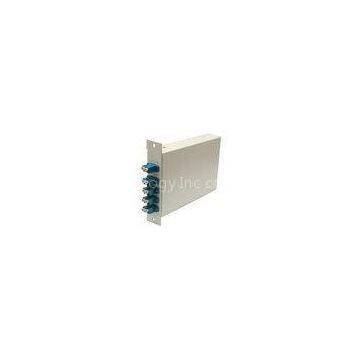

FWDM LGX module MUX DEMUX with 12 LC ports , 1310 nm / 1490 nm / 1550nm

Quick Detail:
?

Name	FWDM module LGX	Application	1310/1550 Wavelength Management
Feature	Screw fixed panel with device installed inside	Color	Black. White
Max Ports Number	12 LC ports	Certificate	ISO RoHS

Description:
?

Filter WDM working on 1310/1490/1550nm

Accept up to 12 LC adapters on the rack panel

Size 156x120x30mm

Silk-printed wavelength marking on the panel

Rack Material aluminum

Color black or white

Applications:?
?

1. Metro Access

2. CWDM System

3. CATV links

4. Uni-direction rings

Specifications:

Operating wavelength (nm)	T13/R15	T15/R13	T13/R1415	T14R1315	T15R1314	T1415R13	T1314R15
Transmission Wavelength Range (nm)	131040	155040	131040	149010	155010	149010&	131040&
155010	149010
Reflection Wavelength Range (nm)	155040	131040	149010&	131040&	131040&	131040	155010
155010	155010	149010
Transmission IL (dB)	???????????????????????????????????????????????????? 0.8 (0.6 Typ.)
Reflection IL (dB)	???????????????????????????????????????????????????? 0.6 (0.4 Typ.)
Transmission Isolation (dB)	???????????????????????????????????????????????????????????? 30
Reflection Isolation (dB)	???????????????????????????????????????????????????????????? 15
Ripple (dB)	??????????????????????????????????????????????????????????? 0.3
PDL (dB)	????????????????????????????????????????????????????????????0.1
PMD (ps)	????????????????????????????????????????????????????????????0.1
RL (dB)	???????????????????????????????????????????????????????????? 45
Directivity (dB)	???????????????????????????????????????????????????????????? 50
Maximum Optical Power (mw)	??????????????????????????????????????????????????????????? 500
Operating Temperature (℃)	??????????????????????????????????????????????????????? -10～70
Storage Temperature (℃)	??????????????????????????????????????????????????????? -40～85
Device Dimension(mm)??????????????? (Φ×L)	????????????????????????????????????????????? Φ5.5*L34? 250um cable
????????????????????????????????????????????? Φ5.5*L38? 900um cable
