Home > Products > Filter Drier > Liquid Line Filter Drier SG Series

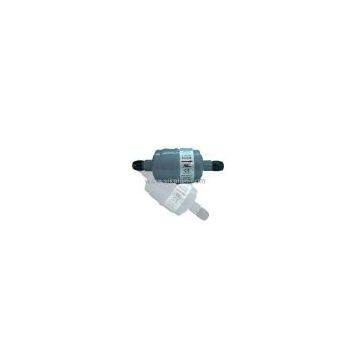

Liquid Line Filter Drier SG Series
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | sikelan | Place of Origin | China | |
| Model Number | SG Series |
Product Description
SG series filters driers adopt the molecular sieve and pearl-shaped active aluminum which is very absorbent.
Feature:
High filtering ability
Perfect protection for the system
Protect the system from presence of various solid pollutants
Suitable for such air conditioning systems with R12, R22 and R502
Two kinds of connection methods: ODF or SAE
Maximum working pressure: 4.70Mpa/680Psig, with the UL and CE certification.
| TYPE | Connection size(in) | Advising capacity KW(cold tonnage) |
Water suction (60ppm hour) |
Refrigerant flower when pressure drop is 0.14 | Total length A(mm) | Body Diameter ΦC(mm) |
|
||
| R-22 |
|
||||||||
| ODF | SAE | R-22 | 24 | 52 |
|
||||
| SG-032 | 1/4 | 3.5(1) | 44 | 39 | 10.6 | 106 | 44 |
|
|
| SG-032-S | 1/4 | 9.85 | 97 |
|
|||||
| SG-033 | 3/8 | 19.8 | 119 |
|
|||||
| SG-033-S | 3/8 | 7.0(2) | 22.2 | 99 |
|
||||
| SG-052 | 1/4 | 5.3(1-1/2) | 71 | 62 | 10.9 | 121 | 62 |
|
|
| SG-052-S | 1/4 | 9.85 | 106 |
|
|||||
| SG-053 | 3/8 | 10.6(3) | 21.1 | 132 |
|
||||
| SG-053-S | 3/8 | 27.8 | 109 |
|
|||||
| SG-083 | 3/8 |
12.3(3-1/2) |
111 | 98 | 21.5 | 154 | 67 |
|
|
| SG-083-S | 3/8 | 27.8 | 133 |
|
|||||
| SG-084-S | 1/2 |
|
40.1 | 138 | |||||
| 14.1(4) | |||||||||
| SG-163 | 3/8 | 221 | 197 | 21.5 | 171 | 76 |
|
||
| SG-163-S | 3/8 | 27.8 | 149 |
|
|||||
| SG-164 | 1/2 | 26.4(7-1/2) | 40.4 | 176 |
|
||||
| SG-164-S | 1/2 | 44.3 | 152 |
|
|||||
| SG-165-S | 5/8 | 61.2 | 160 |
|
|||||
| SG-304-S | 1/2 | 35.2(10) | 418 | 373 | 54.2 | 229 | 76 |
|
|
| SG-305-S | 5/8 | 82.6 | 235 |
|
|||||
| SG-307-S | 7/8 | 52.8(15) | 108 | 248 |
|
||||
