Product Details
| Brand Name | KD | Place of Origin | China | |
| Model Number | KD-SME |
Product Description
Certification:CE

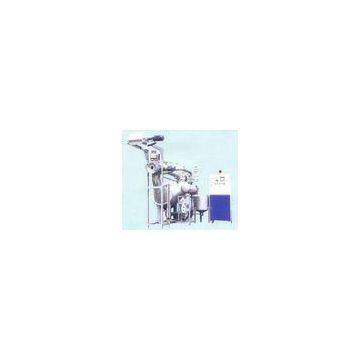

Middle Sample Fabric Dyeing Machine Joker Dyeing High Temperature?
KD-SME Serious HTHP Middle Sample Dyeing Machine
Introduction:
?The SME series is designed for small batch if piece dyeing. Low liquor ratio. Small power consumption and fast fabric turn around time ensure the dyeing quality and result. Production dyeing recipe and process technique can be applied directly without modification. It is available in 5 sizes namely 5kg, 10kg, 20kg, 50kg and 100kg.
Standard structure
Machine body and major wetted parts made of 316/316L highly corrosion resistant stainless steel. Heavy duty stainless steel centrifugal pump for optimal dye liquor circulation. Lifter reel driven by frequency invertors controlled motor. Service tank with feed pump and valve system. (SME-5 does not come with feed pomp) Highly efficient heat exchanger for fast heating and cooling. Level indicator. Pneumatic filling and draining valves. Seam detector.|
Model |
Capacity KG |
Total Power? KW |
Shape size mm(L×W×H) |
|
KD-SME-5 |
5 |
3 |
1300×1000×1600 |
|
KD-SME-10 |
10 |
7.5 |
2450×1050×2060 |
|
KD-SME-20 |
20 |
7.5 |
3750×1200×2200 |
|
KD-SME-50 |
50 |
7.5 |
4600×1400×2650 |
|
KD-SME-100 |
100 |
11 |
6200×1700×2650 |
Principle schedule of operation
V1?? Increase pressure valve
V2? Drive press valve
V3? Door drive press valve
V4? Overrun valve
V5? Influent valve
V6? Row dirt valve
V7? Steam valve
V8? Cooling valve
V9 Cooling water discharge valve
V10 Steam trap valve
V11 check valve
