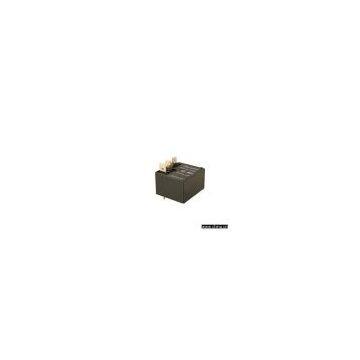

Sell Miniature PC Board Relay

Place of Origin	China

Model No.:SLI
Product Origin:China
Brand Name:SANYOU
Price Terms:FOB
Payment Terms:L/C at sight, T/T in advance
Certification:UL, CQC, TUV
Description:Features: 1) High switching capacity: 30A (1 form A) 2) 2 contact arrangements: 1 form A, 1 form C 3) Sealed type available Specifications: 1) Contact arrangement: 1A, 1C 2) Contact material: silver alloy 3) Contact resistance (6V, 1A): 30mΩ (max.) 4) Rating: Nominal switching capacity: 30A, 240V AC, NC: 10A, 240V AC Resistive load no.: 20A, 240V AC 5) Max. switching voltage: 250V AC 6) Max. switching current: 30A, NC: 10A, no.: 20A 7) Max. switching power: 7,200VA, NC: 2400VA, no.: 4800VA 8) Expected life (min. ope) mechanical at 120cpm: 1 x 107 9) Expected life (min. ope) electrical at 20cpm: 1 x 105 Coil data: 1) Coil consumption sensitivity: 0.9W, 2.0VA 2) Coil voltage: 5 - 110V DC or 12 - 240V AC Characteristics: 1) Operation time: 15m sec. (max.) 2) Release time: 10m sec. (max.) 3) Initial breakdown voltage between coil and contact: 1,500V AC (50 / 60Hz) for 1min 4) Initial breakdown voltage between open contacts: 2000V AC (50 / 60Hz) for 1min 5) Insulation resistance: 100mΩ (min.) (500V DC) 6) Ambient temperature: -55 ~ 85oC 7) Operating humidity: 45 - 85% RH 8) Shock resistance (functional): 10G (min.) 9) Shock resistance (destructive): 100G (min.) 10) Vibration resistance (functional): 10 - 55Hz at double amplitude of 1.5mm 11) Vibration resistance (destructive): 10 - 55Hz at double amplitude of 1.5mm 12) Unit weight: 27g (approx.) 13) Coil specification (at 20oC): a) Pick-up voltage (V DC): DC: 75% (max.) AC: 75% (max.) b) Drop-out voltage (V DC): DC: 10% (min.) AC: 30% (min.) Inner packing: 20pcs/plastic tray 5 plastic trays/inner carton Outer packing: 400pcs (4 inner cartons)/outer carton Carton dimensions: 317 x 246 x 380mm Weight: 12.4kg
