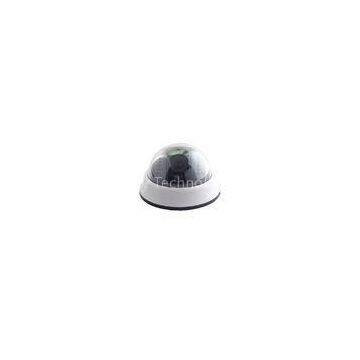

540tvl Vandal-proof Dome CCTV IR Cameras With Manual Iris ,3 Axis Bracket

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

Best Security

Place of Origin

China

Delivery Time:5-7days
Certification:CE , RoHS , OEM

540tvl Vandal-proof Dome CCTV IR Cameras With Manual Iris ,3 Axis Bracket Specifications:

540tvl Dome CCTV IR Camera

1.manual iris,3AXIS BRACKET
2.5 times tests before delivery
3.Prompt Shipping

?

540tvl Dome CCTV IR Camera

Features:

(1)?? Economic high resolution 1/3 SONY 540TVL

(2)?? Vandal proof casing, suitable for high end use

(3)?? High sensitivity in the dark environment, 0.01lux / F1.6, 0 lux(IR ON)

(4)?? Varifocal len 2.8-11MM

(5)?? Smart Light Control to avoid over-exposure

(6)?? Day and night features for 24-hour surveillance

(7)?? IR distance: up to?30 meters with 30 IR LEDs

(8)?? IP66, suitable for indoor and outdoor use

Product datasheet:?

Image Device	1/3\" SONY
TV Format	PAL/NTSC
Number of Pixel	NTSC: 811x508/ PAL: 795x596
Resolution	540 TV lines
Sync.System	Internal
IR LED	30 units IR LEDs
IR Effective Range	UP to?30 meters
IP Rating	IP66
IRIS	Manual
Minimum Illumination	0LUX(IR ON)
LEN	2.8-11MM
IRIS	Manual
AGC	AUTO
S/N Ratio	≥48dB
Smart Light Control	YES
Gain Control	Auto
White Balance	Auto(2500°K~9500°K)
Electronic Shutter	Auto E Shutter:1/60(1/50)~1/100000 Sec(PAL) 1/60~-1/120,000 Sec(NTSC)
Back light Compensation	AUTO
Video Output	1.0Vp-p composite 75ohm
Power Consumption	300mA
Power Supply	DC12V
Operation Temp	-10°C~+50°C
