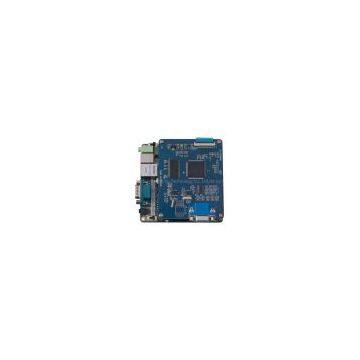

S3C2440 ARM9 Development Board VGA Module 256MB

S3C2440 ARM9 Development Board VGA Module 256MB

Specification
- Processor -- Samsung S3C2440 (ARM920T core) clocked at up to 533MHz
- Memory -- 64MB SDRAM (up to 100MHz)
- Flash -- 256MB NAND flash; 2MB NOR flash
- Flash expansion -- 1 x SD card interface
- Display -- VGA Module (Up to 1024x76@70Hz )
- Networking -- 1 x 10/100 Ethernet RJ-45 interface (DM9000 chip)
- WiFi -- optional WiFi module
- USB -- 1 x USB Host; 1 x USB Slave (B-type interface)
- Serial -- 1x DB9 connector (RS232), total: 3x ports
- Audio -- 1 x stereo audio output interface; 1 x mic interface
- Camera -- 1 x 20-pin (2.0mm space) camera interface; optional CMOS or USB cameras
- Other I/O:
  - 1 x 10-pin (2.0mm space) JTAG interface
  - 4 x user LEDs
  - 6 x user buttons
  - 1 x PWM control buzzer
  - 1 x adjustable resistance, for AD conversion test
  - 1 x I2C bus AT24C08 chip, for I2C bus test
  - 1 x 34-pin 2.0mm GPIO interface
  - 1 x 40-pin 2.0mm system bus interface
- RTC battery
- Clock -- internal real-time clock and 12Mhz passive crystal system clock source
- OS Support Linux-2.6.xx + Qtopia  (Pre-installed system) and Windows CE 5.0/6.0
- System Update method: pre-installed download the update the system bios support for USB
- Power Connector: 5V with switch and LED

Dimensions -- 3.9 x 3.9 inches (100 x 100mm)

Package Included:
1.  MINI2440 S3C2440 ARM9 Development Board (Preload with Linux)
2.  1 VGA Module
3.  1 Serial cable
4.  1 Net cable
5.  1 USB cable
6.  5V Power Adapter
7.  1 JTAG board(for H-JTAG)
8. DVD Document with Software WinCE , Linux ,Manual
