CE Approval 0.7mm Stainless Steel CZ Purlin Roll Forming Machine 18 Roller Stations
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Frequency Swallow Tail Floor Tile Making Machine Customized YX51-200-600
-
Trapezoidal Profile Floor Deck Roll Forming Machine , Glazed Tile Making Machine
-
High Standard Trapezoidal Sheet Floor Deck Roll Forming Machine With 12M Auto Stacker
-
PLC Control Roll Forming Machinery Rectangle Tube Mill GCr15 Rollers 45# Steel Shaft
-
Fly Saw Cutting Cooling System Rectangle Pipe Downspout Roll Forming Machine Bite Connection
-
Profiled Steel Sheet Floor Decking Panel Roll Forming Machine Feeding Width 1220mm
Product Details
| Brand Name | Suhang | Place of Origin | China | |
| Model Number | RF-ST |
Product Description
Certification:CE, SGS, ISO
0.7mm Stainless Steel Z Purlin Roll Forming Machine 18 Roller Stations
1. Technical Parameter
The?specification?of?the?rolling?production?(mm):0.7mm?stainless?steel
The?speed?of?the?roll-in:?10-12M/min
The?number?of?the?roller:?about?15?stations
The?material?of?the?roller:?use?the?excellent?hammered?steel?GCr15?to?be?quenched?as?a?whol then?to?process?by?numerical?control.
The?material?of?the?principal?axis:?use?the?excellent?steel?No.45?to?process.
The?power?of?the?principal?electric?motor:?7.5kW
Hydrodynamic?station?cut:?5.5kW
The?size?of?the?shape?equipment:?6.3×0.8×1.0?meter?(see?the?appendix?2)
The?gross?weight?of?the?equipment:?About?4?T
Accessories:?one?set?of?the?stacking?shelf,?one?set?of?leveling?mechanism,?one?set?of?punching?and?
cutting?mechanism,?one?set?of?hydrodynamic?station,?one?set?of?computer?control?system?(Panasonic
?programmable?PLC,?touchable?display?screen,?a?series?of?Panasonic?transducers,?and?OMRON?
encoder)?a?set?of?material?shelf.
2. Working Flow
Uncoiling- Feeding&Leveling- Rollforming- Cutting -Products collecting?
3. Profile

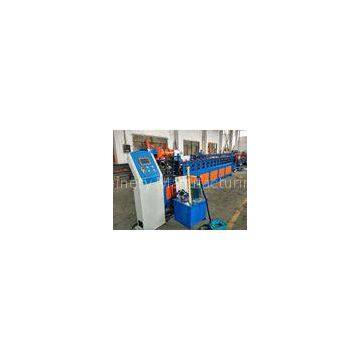

4. Machine Photo
