1mm Thickness C Stud Roll Forming Machine for C Track Window Rail

FOB Price

USD $10000 - $15000/ / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	C Stud Roll Forming Machine		Place of Origin	China
Model Number	RF-CS

Delivery Time:60 days after deposit
Certification:CE, SGS, ISO

1mm Thickness C Stud Roll Forming Machine for C Track Window Rail

Technical Parameter

?	Items	Specification
Material of coil	material thickness	1mm?galvanized?coils?or?black?steel
?	Profile?width	About?22mm
?	Profile?height	About?5.5mm
Forming system	Rolling?Speed	10-15m/min
?	Roller?Stations	10?stations
?	Roller?Material	45#?Steel?with?quenching?60mm?shaft
?	Maim?Motor?Power	3?kw
?	Hydraulic cutting power	3?kw
Cutting system	Cutting blade material?	Cr12
?	Hardness	HRC58-62
?	Tolerance?	+-1.5mm
Electrical Control System	Power supply	380V,?50HZ,3?phase?
?	conrol system?	PLC Panasonic
?	Machine weight?	about 2.5Tons
?	Way of drive?	1 inch single chain?
?	Machine size	Length?3500mm?Width?500mm?Height?800m

Working Flow

feeding with guide—Rollforming——Cutting—Products?collecting

Profile Drawing?

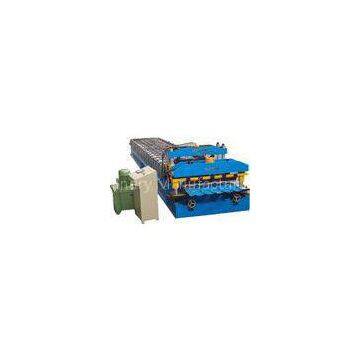

Machine Photo

Spare Parts
