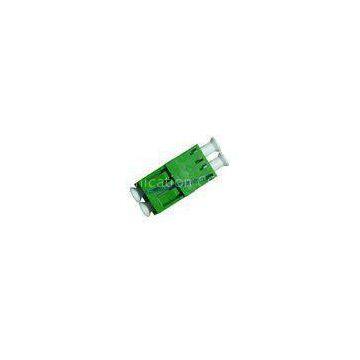

LC / APC Duplex Optical Cable Adapter For Testing Instruments / fiber optic 9/125

LC / APC Duplex Optical Cable Adapter For Testing Instruments / fiber optic 9/125?

Fiber optic adapter provides the connection between the fiber optic patch cord or pigtails. Fiber optic adapters (also called couplers) are designed to connect two fiber optic cables together. They come in versions to connect single fibers together (simplex), two fibers together (duplex), or sometimes four fibers together (quad).

Adapters are designed for multimode or singlemode cables. The singlemode adapters offer more precise alignment of the tips of the connectors (ferrules). It is ok to use singlemode adapters to connect multimode cables, but you should not use multimode adapters to connect singlemode cables. This can cause misalignment of the small singlemode fibers and loss of signal strength (attenuation).

Fiber Optic Adapter Specifications????

Insertion loss (Typical/Max): 0.2dB/0.3dB

Retention Force: 200 - 600 grams

Durability (500 Matings): 0.15dB max

Operating temperature: -40 ~ +80℃

Storage temperature: -40 ~ +80℃

Fiber Optic Adapter Features
Good compatibility
High precision of dimensions

Good reliability & stability

Zicornia Ceramic Sleeve

PC and APC fiber stub port

Single mode and Multimode

Various Styles and Colors support
?

Fiber Optic Adapter Applications

CATV Networks
Telecommunication Networks
Local Area Networks(LANS) and Wide Area Networks(WANS)
FTTH and FTTx
Active Device Termination
Testing Instruments

Ordering Information

Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler
