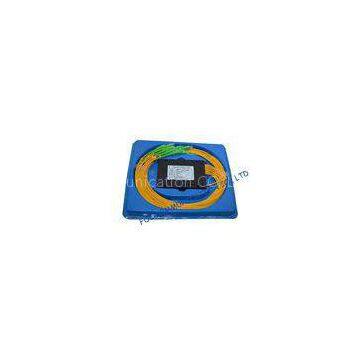

Ribbon Fan Out Fiber PLC Splitter 1 32 for Optical Signal Distribution , Low Insertion Loss
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Stability Bundle Fan Out Pigtail Optical Fiber LC / APC 8Core SM For LAN
-
Bundle Fan Out 100% Test Meet RoHS fiber pigtail connector 0.9mm Suitable for ODF
-
0.9mm Fiber Optic Pigtail SC 12Colors Multimode Suitable for ODF
-
Low Insertion Loss Simplex Singlemode Fiber Optic Patch Cord For FTTH Systems
-
Fiber Optic Patch Cord Simplex or Duplex FC / UPC Singlemode LSZH Jacket
-
LC / APC Duplex Optical Cable Adapter For Testing Instruments / fiber optic 9/125
Product Details
| Brand Name | FOCABLE | Place of Origin | China | |
| Model Number | 1 × 32 PLC Splitter Ribbon Fan Out Type |
Product Description
Ribbon Fan Out Fiber PLC Splitter 1 × 32 for Optical Signal Distribution , Low Insertion Loss?
?
Planar lightwave circuit splitter (PLC Splitter) is a kind of integrated waveguide optical power distribution device based on quartz substrate. It has the advantages of small volume, wide bandwidth, high reliability, excellent uniformity. Optical fiber splitter is especially suitable for passive optical networks (EPON, BPON, GPON) which is connected with the terminal equipment and realize the optical power distribution.
?
FOC COMMUNICATION CO., LTD provides 1*N and 2*N fiber optic splitters. And these PLC splitters can be made as per customer request.
Features
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental?and Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Optical Signal Distribution
Test Equipments
?
Optical Specifications
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
1X2 |
1X4 |
1X8 |
1X16 |
1X32 |
1X64 |
|
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.4 |
10.7 |
13.9 |
17.2 |
21.5 |
|
Uniformity (Max.) |
dB |
0.5 |
0.8 |
1.0 |
1.4 |
1.6 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
℃ |
-40～+85 |
|
Parameter |
Unit |
Specification (P Grade) |
|||||
|
Channel Number |
2X2 |
2X4 |
2X8 |
2X16 |
2X32 |
2X64 |
|
|
Operation Wavelength |
nm |
1260～1650 |
|||||
|
Insertion Loss (Max.) |
dB |
4.3 |
7.6 |
11.0 |
14.8 |
17.9 |
21.5 |
|
Uniformity (Max.) |
dB |
0.8 |
1.0 |
1.2 |
1.5 |
1.8 |
2.0 |
|
Polarization Dependent Loss |
dB |
0.2 |
0.3 |
0.3 |
0.3 |
0.3 |
0.5 |
|
Return Loss |
dB |
≥50 |
|||||
|
Directivity |
dB |
≥50 |
|||||
|
Operating Temperature |
℃ |
-40～+85 |
|||||
|
Storage Temperature |
