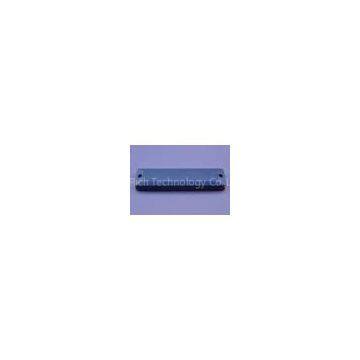

Gray 117×31×12mm Metal RFID Tag , 860～960MHz PCB / ABS UHF Metal Tag for IT Management

Introduction:

This tag is designed on wave-absorbing material. It solves the problem that tags can not be attached to metal surface(Reading distance even will be father when it is attached to metal surface). At the same time, it can work outside in the hard environment. It complaints with EPC C1G2 (ISO18000-6C), operating frequency is 860～960MHz (It can be used worldwide). Each tag has a unique ID and stores user data.

RFID Features:

Protocol: EPC C1G2 (ISO18000-6C)

Frequency: 860～960MHz

Chip: Alien Higgs 3 (optional)

EPC Memory: 96 bits, maximum 480 bits

User Memory: 512 bits

Read Range: Stationary reader: Over 5m (30dBm)

????????????????????? Handheld reader: Over 2m (28dBm)

Other Features:

Environmental: ROHS compliant

Data storage: >10 years

Re-write: 100,000 times

Fixture: 3M adhesive or rivet

Customization: Company logo print

Application:

Warehouse logistics management, assets management, automotive component tracking, industrial manufacturing, etc.

Physical Features:

Product Model: RCP8006????

Material: FR-4,ABS

Dimensions: 117×31×12mm

Weight: 22.3g

Color: Gray (optional)

Working Temperature: -40℃～120℃
