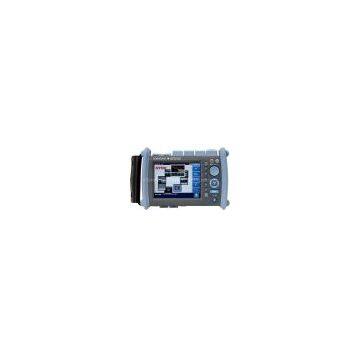

Yokogawa AQ1200 Multi Field Tester OTDR
Negotiable
/ Case
1 Case(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Place of Origin | China | |
| Model Number | AQ1200 |
Product Description
All-in-One handheld optical fiber network test tool
Powerful test features
■OTDR
• SM 1310/1550nm
• Short 80cm event dead zone
■Fault locator
■Video fiber inspection
supports external USB probe
■Optical loss test (option)
• Light source: 1310/1550nm SMF
• Optical power meter: Standard/High power
• Multi-core fiber test capability
■Visual fault locator (option)
visible light source
■PING test (option)
Excellent operations
■Small (8" by 6", A5 size) and Lightweight (1 kg)
■Easy-to-See, large color LCD
■Multi-Language support
■AQ7275 OTDR-like interface
Rotary knob and arrow key
■USB ports
for data storage, remote control,
and video fiber inspection probe
|
Models
|
AQ1200A
|
|
|
Wavelength (nm)
|
1310/1550 ± 25nm
|
|
|
Distance range
|
500m,1km,2km,5km,10km,20km,50km,100km,200km
|
|
|
Pulse width
|
3ns,10ns,20ns,50ns,100ns,200ns,500ns,1μs,2μs,5μs,10μs
|
|
|
Dynamic range
|
32/30 dB
|
|
|
Event dead zone
|
0.8m
|
|
|
Attenuation dead zone
|
5/5 m (typ)
|
|
|
Applicable fiber
|
SM (ITU-T G.652)
|
|
|
Optical connector
|
SC, FC, ASC
|
|
|
Laser class
|
1M
|
|
|
Display
|
5.7 inch color LCD (640x480)
|
|
|
Battery operation time
|
6 hours
|
|
|
Interface
|
USB port
|
USB1.1 TYPE A x 1, TYPE B (mini) x 1
|
|
DC power
|
For AC adapter
|
|
|
Dimensions
|
217.5(W) x 157(H) x 74(D) mm
|
|
|
Mass
|
Approx. 1kg (incl. Protector and internal battery)
|
|
•Loss test option
|
Optical
Power
meter
|
Power meter type
|
Standard(/SLT)
|
High Power(/HLT)
|
|
Wavelength setting
|
850/1300/1310/1490/1550/1625/1650nm,
800 to 1700nm (1nm steps), or
CWDM (1270 to 1610nm, 20nm steps)
|
||
|
Power range
|
+10 to -70dBm (CW)
+7 to -70dBm (CHOP)
|
+27 to -50dBm (CW)
+24 to -50dBm (CHOP)
|
|
|
Noise level
|
0.5nW (-63dBm, 1310nm)
|
50nW (-43dBm,1310nm)
|
|
|
Uncertainty under standard conditions
|
± 5%
|
||
|
Readout resolution
|
0.01
|
||
|
Level unit
|
Absolute: dBm, mW, μW, nW Relative: dB
|
||
|
Modulation mode
|
CW, CHOP (270Hz/1kHz/2kHz)
|
||
|
Average function
|
1, 10, 50, and 100 times
|
||
|
Stabilized
Light
source
|
Wavelength (nm)
|
1310/1550 ± 25
|
|
|
Light emitting device
|
LD
|
||
|
Spectral width (nm)
|
<5 / <10
|
||
|
Optical output level(dBm)
|
-3 ± 1
|
||
|
Level stability (dB)
|
± 0.05
|
||
|
Modulation mode
|
CW, 270Hz, 1kHz, 2kHz
|
||
|
Applicable fiber
|
SM (ITU-T G.652)
|
||
|
Laser class
|
1
|
||
|
Memory and logging function
|
Measurement data storage: 10 to 1000 data
Logging interval: 0.5, 1, 2, 5, or 10 sec
|
||
•Visible light source (/VLS) option
|
Optical connector
|
2.5 ferrule type
|
|
Optical wavelength and output level
|
650nm± 20nm, -3dBm or more (peak)
|
|
Modulation mode
|
CHOP approx.2Hz
|
|
Laser class
|
3R
|
•Ethernet I/F (/LAN) option
|
Interface
|
10BASE-T/100BASE-TX
|
|
Functions
|
Ping test, remote control
|
