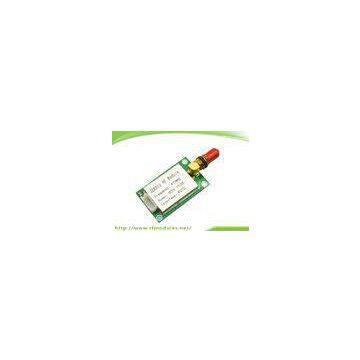

Low Consumption Intelligent RS232 433MHz FSK Rf Module Wireless Transceiver Module

RS232 , 100MW ?Low Power RF Module For Wireless Remote Alarm , Approved By CE JZX863

Specification:

Technical?specification?of?JZX863:

Description:

1.Power?and?receiving?sensitivity?
The?transmission?power?is?<10mW,Receiving?sensitivity:?-110dbm,
Transmission?current<100mA,Receiving?current<10mA,sleeping?current?<1uA.

2.?Modulation?mode?and?Frequency?
Modulation?mode:FSK,Frequency:433mhz.Also?capable?of?315mhz,868mhz?and?915mhz.

3.?High?anti-?interference?and?low?BER(Bit?error?Rate)
Based?on?the?FSK?modulation?mode,the?high-?efficiency?forward?error?correction?channel?encoding?technology?is?used?to?enhance?datas?resistance?to?both?burst?interference?and?random?interference?and?the?actual?bit?error?rate?of?10-5?~?10-6?can?be?achieved?when?channel?bit?error?rate?is?10-2.

4.?Long?transmission?distance?
Within?the?range?of?visibility,the?reliable?distance?isBER=10-3/1200bps>500m?when?the?antenna?is?higher?than?200m?(BER=10-3/9600bps).?

5.?Transparent?data?transmission?
Transparent?data?interface?is?offered?to?suit?any?standard?or?nonstandard?user?protocol.Any?false?data?generated?in?the?air?can?be?filtrated?automatically?(What?has?been?received?is?exactly?what?has?been?transmitted).The?change?time?between?receiving?and?sending?is?<10ms.?

6.?Multi-?channel
The?standard?JZX863?configuration?provides?8?channels?to?meet?the?multiple?communication?combination?mode?of?the?user.

7.?High?speed?wireless?communication?and?Large?data?buffer?zone?
When?the?RF?baudrate?is?bigger?than?COM?baudrate,allowing?to?transmit?unlimited?length?data?at?one?time,when?the?RF?baudrate?is?smaller?or?equal?to?the?COMs,allowing?the?transmission?of?255?Bytes?data?.?

8.?Intelligent?data?control?and?the?user?doesnt?need?to?prepare?excessive?programs?
Even?for?semi?duplex?communication,the?user?doesnt?need?to?prepare?excessive?programs,?only?receiving/transmitting?the?data?from?the?interface.JZX863?will?complete?the?other?operations?automatically,such?as?transmission/receiving?conversion?in?the?air,control,etc.

9.?High?reliability,?small?and?light?
Single?chip?radio?-?frequency?integrated?circuit?and?single?chip?MCU?are?used?for?lessened?peripheral?circuits,high?reliability,and?low?failure?rate.?

10.?Watchdog?monitor?
Watchdog?monitors?the?inner?function,it?changes?the?traditional?product?structure?and?also?improve?the?reliability?of?our?modules.

Applications:

1.AMR?Automatic?Meter?Reading

2.Wireless?alarm?and?security?systems

3.Home?automation

4.Low?power?telemetry

5.Wireless?conference?voting?system;

6.Sports?training?&?competition;

7.Wireless?dishes?ordering;

8.Wireless?POS,?PDA?wireless?smart?terminal;

9.Electronic?bus?station?and?intelligent?traffic;

10.RF?transmitter?Wireless?electronic?display?screen?and?queuing?machine;

11.?Wireless?telemetry?charging?for?parking,?parking?lot
