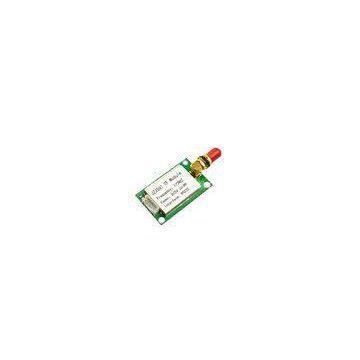

Long Distance GFSK 16 Channels Wireless Transceiver Module 433MHz

433/868/915MHZ , 5W/10W Long Distance Transceiver Module , Approved By CE ?JZX878

Specification:

Technical?specification?of?JZX878:

Description:

1.Power?and?receiving?sensitivity?
? ? Transmission?power:5W/10w,RX?current:<45mA,TX?current:1.5A.?
? ? High?receiving?sensitivity:-123dbm.
?

2.?Modulation?mode?and?Frequency?
? ? ?Modulation?mode:GFSK,Frequency:430MHz---470MHz.
?

3.?High?anti-?interference?and?low?BER(Bit?error?Rate)?? ? ? ? ? ? ? ? ? ??Based?on?the?GFSK?modulation?mode,the?high-?efficiency?forward?error?correction?channel?

?encoding?technology?is?used?to?enhance?datas?resistance?to?both?burst?interference?and?random?interfer ?ence?and?the?actual?bit?error?rate?of?10-5?~?10-6?can?be?achieved?when?channel?bit?error?rate?is?10-2.
?

4.?Long?transmission?distance?
? ? ?Within?the?range?of?visibility,It?can?transmit>20km?when?the?antenna?height?is?grater?than?8m(),

?and>10km
?

5.?Transparent?data?transmission?
? ??Transparent?data?interface?is?offered?to?suit?any?standard?or?nonstandard?user?protocol.Any?false?data?

?generated?in?the?air?can?be?filtrated?automatically?(What?has?been?received?is?exactly?what?has?been?tran ?smitted).?
?

6.?Multi-?channel
? ? The?standard?JZX878?configuration?provides?16?channels?to?meet?the?multiple?communication?

?combination?mode?of?the?user.
?

7.?High?speed?wireless?communication?and?Large?data?buffer?zone?
? ? ?When?the?RF?baudrate?is?quicker?than?COM?baudrate,allowing?to?transmit?unlimited?length?data?at?one?

?time,?when?the?speed?rate?is?slower?or?equal?the?interfaces,allowing?the?transmission?of?255?Bytes?long?da ?ta?frames?at?one?time?for?more?flexible?programming?by?users.?
?

8.?Intelligent?data?control?and?the?user?doesnt?need?to?prepare?excessive?programs?
? ? ?Even?for?semi?duplex?communication,?the?user?doesnt?need?to?prepare?excessive?programs,?only?

?receiving/transmitting?the?data?from?the?interface.JZX878?will?complete?the?other?operations?automatically, ?such?as?transmission/receiving?conversion?in?the?air,control,etc.
?

9.?High?reliability,?small?and?light?
????Single?chip?radio?-?frequency?integrated?circuit?and?single?chip?MCU?are?used?for?lessened?peripheral?

?circuits,high?reliability,and?low?failure?rate.?
?

10.?Watchdog?monitor?
? ? ?Watchdog?monitors?the?inner?function,it?changes?the?traditional?product?structure?and?also?improve?the ? reliability?of?our?modules.

Applications:

1.AMR?Automatic?Meter?Reading

2.Wireless?alarm?and?security?systems

3.Home?automation

4.Low?power?telemetry

5.Wireless?conference?voting?system;

6.Sports?training?&?competition;

7.Wireless?dishes?ordering;

8.Wireless?POS,?PDA?wireless?smart?terminal;

9.Electronic?bus?station?and?intelligent?traffic;

10.RF?transmitter?Wireless?electronic?display?screen?and?queuing?machine;

11.?Wireless?telemetry?charging?for?parking,?parking?lot;

12.Wireless?modem?Automobile?inspection?and?four-wheel?orientation;

13.Wireless?sensor?Industrial?wireless?remote?control?and?air?conditioning?remote?controller;

14.O
