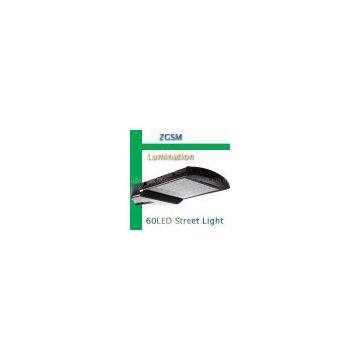

60W LED Street Lighting

LED Street lights help our city become brighter and greener.

Increased Visibility
Minimal Energy Consumption
Decreased Maintenance

Product Specification/Models
Model No.: ZGSM-LLD60WD
LED Q' ty, LED Power: 60pcs, 60W
Total Power: 67W
Input Voltage: 90 - 264 V AC or 12V/24V DC
Frequency Range: 50 - 60 HZ
Power Supply Efficiency:>= 90%
Total Harmonic Distortion(THD):<10%
LED Initial Luminous:6,000lm (Ta=25ºC)
LED Maintain Luminous:5,400lm (Ta=25ºC)
Lamp's Output Ratio/ Efficiency: >= 90%
Power Factor(PF):>= 0.99
Color Temperature(CCT):Cool White: 6,000 - 6,500K; Pure White: 5,000 - 5,500K; Warm White: 3,000 - 3,500K
Color Index(CRI):Pure White: Ra >= 75; Warm White: Ra >= 80
Beam Angle (50%):Vertical Axis:67º, Horizontal Axis: 150º
Beam Angle (10%):Vertical Axis:116º, Horizontal Axis: 175º
IP Rating:IP65
Working Temperature:-30 to 50 ºC
Working Humidity:10 to 90% RH
Storage Temperature:-10 to 50 ºC
Lifespan:50,000hrs life, 3yrs warranty
Housing & lens: Aluminum and Reinforced Glass
Dimension:624 x 326 x 109mm,
Light N.W:8.0 kgs
Packing Manner:1pc/ Carton
Packing Dimension:725 x 380 x 130 mm
Packing G.W:9.2 kgs


Application
City streets, Municipal roadways,Bridges, Housing projects, Public parks, Parking lots, Yards and other settings with needs of high-brightness general illumination

Payment
TT, L/C

Delivery
To be Confirmed

Remarks
CE, RoHS, GS FCC, ISO 9001, ISO14001, IP65 Listed
