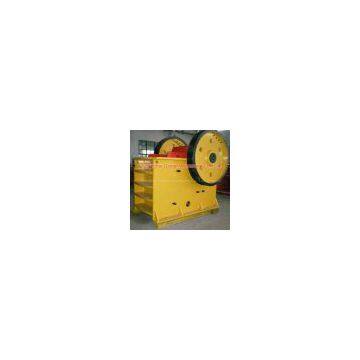

Shanghai Jaw Crusher

FOB Price

US$ 30000 - 30000 / Set

1 Set(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	golden		Place of Origin	China
Model Number	PE series

Product Description

Features and benefites Jaw Crusher PE600x900 from shanghai

jaw crusher is one of the most popular equipments in mine industry production.It is mainly used in all kinds of materials with middle crushing or coarse crushing, and the crush resistance below 320m pa.It has the features of high crushing rate,simple structure,stable operation,easy maintenance and low operation cost.Jaw crusher is drived by motor through the motors wheels,the eccentric shaft is drived by the frangle belt and slot wheel to make the movable jaw plate move by a regulated track.Therefore, the materials in the crushing cavity composed of fixed jaw plate,The movable jaw plate and cheek plate can be crushed and discharged through the diacharging opening.

Applicability of Jaw Crusher

Jaw crusher is widely used in grinding bartle,metallurgy,building matrials,high road,raiway,water conservancyand so on

Features and benefites

Simple structure,easy operation and maintenance,stable and low operation cost, high crushing rate.

Technical parameters

Model	Feed size mm	Max feed size mm	Adjusting Rang mm	Eccentric shaft speed r/min	Output t/h	Power of motor kw	Overall dimension mm	weight t
PE-150×250	150×250	125	10-40	300	1-5	5.5	875×758×850	0.81
PE-250×400	250X400	210	20-60	300	5-20	15	1450×1315×1296	2.8
PE-250×750	250×750	210	25-60	330	8-22	22	1670×1550×1020	4.9
PE-400×600	400×600	340	40-100	275	16-65	30	1565×1732×1586	6.5
PE-500×750	500×750	425	50-100	275	40-100	55	1890×1916×1870	10.1
PE-600×900	600×900	500	65-160	250	50-120	75	2310×1840×2250	15.5
PE-750×1060	750×1060	630	80-140	250	52-180	110	2450×2472×2840	28
PE-900×1200	900×1200	750	95-165	200	140-260	110	3335×3182×3025	51
PE-1000×1200	1000×1200	850	195-265	200	230-380	132	3890×2830×3030	57
PE-1200×1500	1200×1500	1020	150-300	200	300-600	160	4280×3323×3500	100.9
PEX-250×1000	250×1000	210	25-60	330	16-52	30-37	1530×1992×1380	6.5
PEX-250×1200	250×1200	210	25-60	330	20-60	37	1900×2192×1430	7.7
PEX-300×1300	300×1300	250	20-105	330	20-90	75	2720×1950×1600	11
