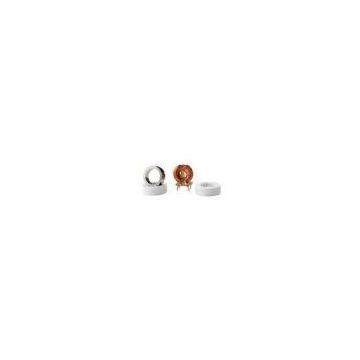

Low Core Loss Magnetic Cores / Transformer Cores For Precision Power Meter AT141005P
- T/T L/C D/P D/A
- 7 days
You May Like
-
Iron Based Nanocrystalline Alloy, Silicon Steel and Permalloy Instrument Transformer Cores
-
High Saturation Induction Instrument Transformer Cores With 30 * 20 * 15mm NST302015E
-
High Permeability 160W Silicon Steel and Permalloy Iron Cores / Transformer Core NST25161E
-
High Permeability Magnetic Cores / Transformer Cores For Current Overload Protection
-
Saturation Induction 350W Iron Cores / Transformer Cores With 30 * 20 * 15mm NST302015E
-
Excellent Thermal Stability 25 * 16 * 10mm 160W Magnetic Cores / Nanocrystalline Core
Product Details
| Brand Name | QIDA | Place of Origin | China | |
Product Description
Certification:ISO9001
Low Core Loss Magnetic Cores / Transformer Cores For Precision Power Meter AT141005P
Applications
???Electronic Watt hour meter
???Precision power meter
???Current overload protection in engine control
???Current control in automation industry
Characteristics
??? High permeability, which lead to low phase and amplitude error
??? Very high saturation flux density compared with Permalloy, which bring higher measurement current range
?? ?Low core loss
??? Excellent temperature stability
|
Item No. |
Specification |
Size(mm) |
Ac(cm2) |
Le(cm) |
AL@1kHz,1v(μH) |
|||
|
(mm) |
External |
Internal |
Highth |
Min |
Max |
|||
|
AT141005P |
14×10×5 |
15.5 |
8.5 |
6.8 |
7.8 |
37.68 |
0.08 |
0.54 |
|
AT161008P |
16×10×8 |
18.2 |
8.3 |
10.3 |
18.72 |
40.82 |
0.18 |
0.12 |
|
AT181108P |
18×11×8 |
20.2 |
8.8 |
9.7 |
21.84 |
45.53 |
0.18 |
1.2 |
|
AT181110P |
18×11×10 |
20.2 |
9.1 |
11.9 |
27.3 |
45.53 |
0.23 |
1.5 |
|
AT191005P |
19×10×5 |
20.8 |
8 |
6.8 |
17.55 |
45.53 |
0.15 |
0.1 |
|
AT201208P |
20×12×8 |
21.8 |
10.6 |
10 |
24.96 |
50.24 |
0.19 |
1.3 |
|
AT201210P |
20×12×10 |
21.8 |
10.6 |
12.1 |
31.2 |
50.24 |
0.24 |
1.6 |
|
AT241410P |
24×14×10 |
27 |
11.8 |
14.1 |
39 |
59.66 |
0.32 |
2.1 |
|
AT261608E |
26×16×8 |
27.2 |
13.9 |
10.8 |
31.2 |
65.94 |
0.18 |
0.6 |
